IMP-GMX3(H61 LGA1155)
  • IMP-GMX3(H61 LGA1155)
  • IMP-GMX3(H61 LGA1155)
  • IMP-GMX3(H510-G587)
IMP-GMX3(H61 LGA1155)
Motherboards

IMP-GMX3(H61 LGA1155)

Out of stock
RM219.00
Shipping calculated at checkout.

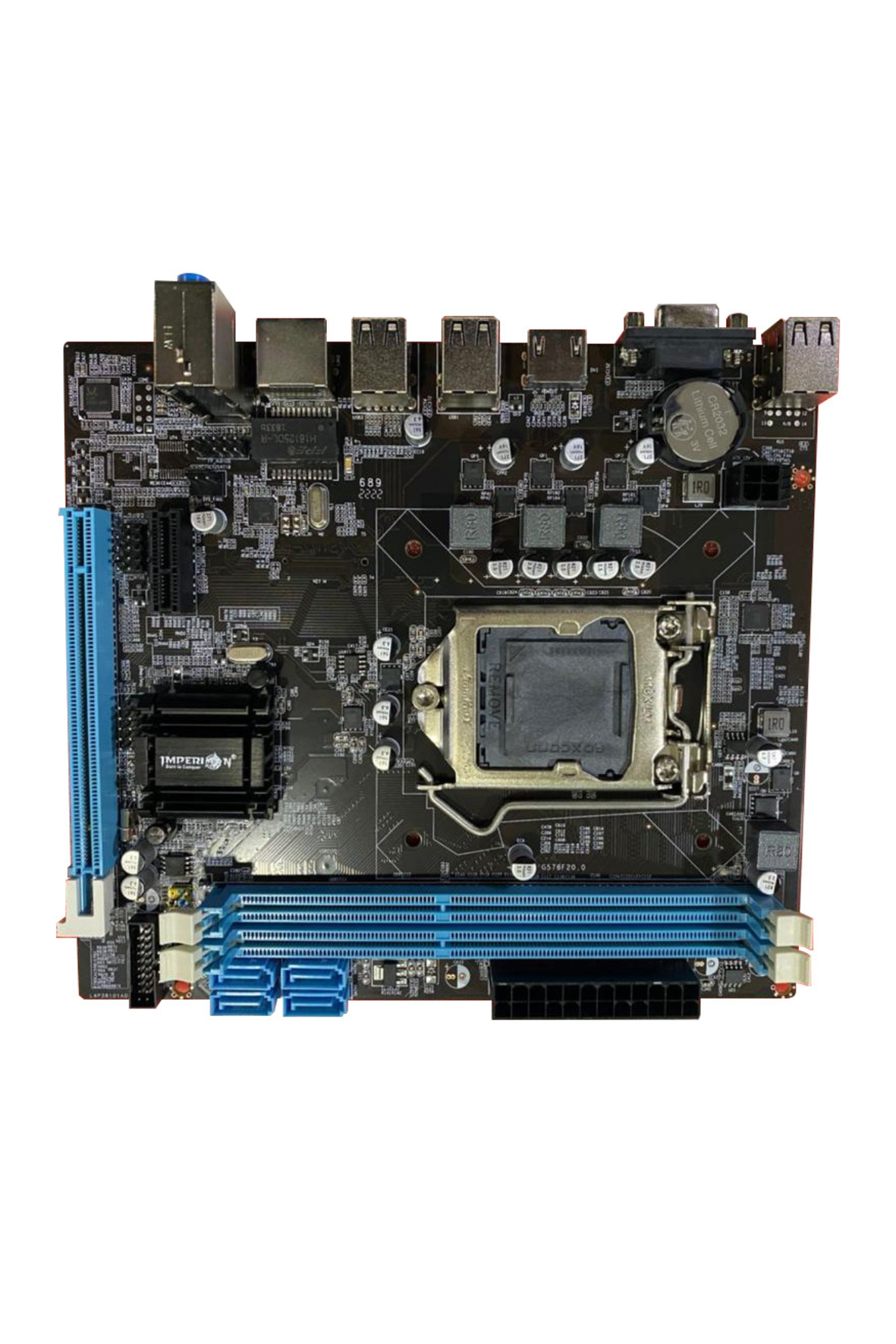

Refresh a compatible desktop with the Imperion IMP-GMX3 (H61 LGA1155) motherboard. Built around the Intel H61 chipset, it combines an LGA1155 socket for compatible Intel Core i3, i5 and i7 processors with two DDR3 memory slots supporting a listed maximum of 16GB.

Connect your drives through four SATA II ports and add compatible hardware through the expansion slots. HDMI and VGA offer monitor connection options, while six rear USB 2.0 ports, wired LAN and six-channel HD audio keep everyday peripherals connected. The board measures 17 × 19cm. Verify exact processor, BIOS, memory and case compatibility before installation; onboard display outputs depend on the processor's graphics support.

Weight:

Size: 17 × 19cm

Material:

Warranty: 1 year carry-in warranty for standard product; 3-months carry-in warranty for warehouse sale items.
Key Features
  • Intel H61 chipset and LGA1155 socket for compatible Intel Core i3, i5 and i7 processors.
  • Two DDR3 memory slots with dual-channel support and a listed maximum capacity of 16GB.
  • Listed memory speeds of 1066/1333/1600MHz, subject to processor and memory compatibility.
  • PCIe x16 slot and an additional x1 expansion slot for compatible hardware.
  • Four SATA II ports for storage connections.
  • HDMI and VGA display outputs, subject to processor graphics support.
  • Six rear USB 2.0 ports, Realtek 100Mbps LAN and six-channel HD audio.
What's in the box

1 × Imperion IMP-GMX3 (H61 LGA1155) motherboard
Specifications
  • Model: Imperion IMP-GMX3 (H61 LGA1155)
  • Chipset: Intel H61
  • CPU socket: LGA1155; listed support for compatible Intel Core i3, i5 and i7 processors. Check exact CPU and BIOS compatibility.
  • Memory: 2 × DDR3 slots, dual-channel support, up to 16GB; listed speeds 1066/1333/1600MHz
  • Expansion: 1 × PCIe x16 slot and 1 × x1 expansion slot
  • Storage: 4 × SATA II ports

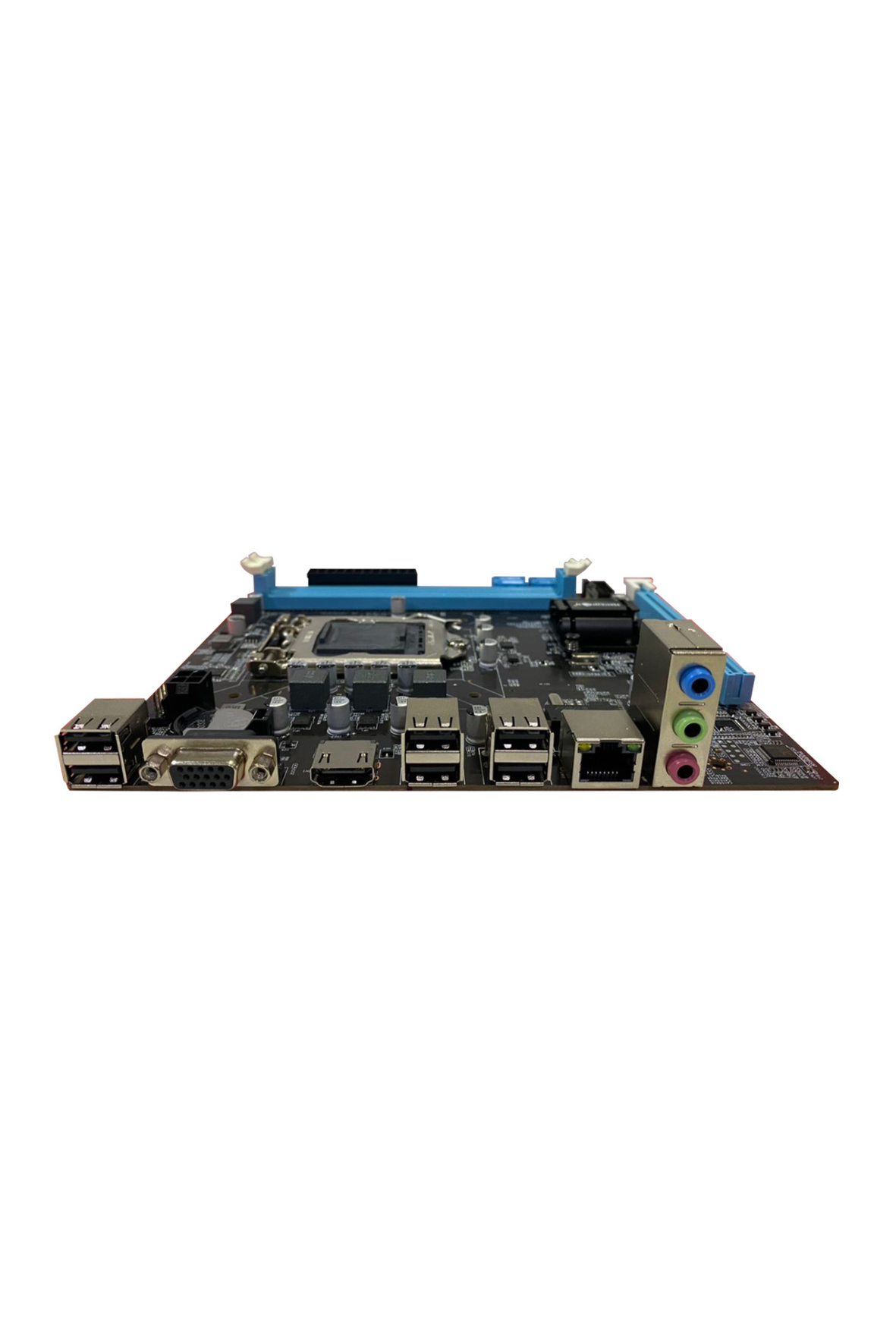

  • Rear connections: 6 × USB 2.0, 1 × HDMI, 1 × VGA, 1 × RJ45 and audio jacks for line-in, line-out and microphone-in
  • LAN: Realtek 100Mbps LAN
  • Audio: Realtek ALC six-channel HD audio codec
  • Board dimensions: 17 × 19cm
User's Manual
Warning
Disclaimer

This image is for reference only, please refer to the actual product.
