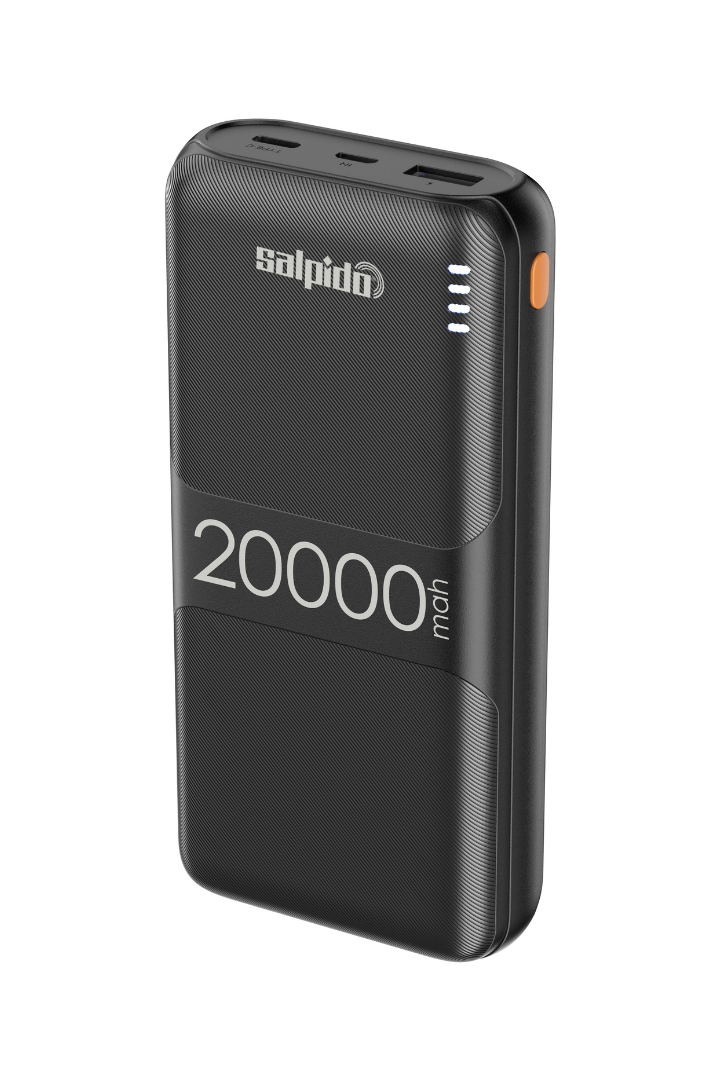

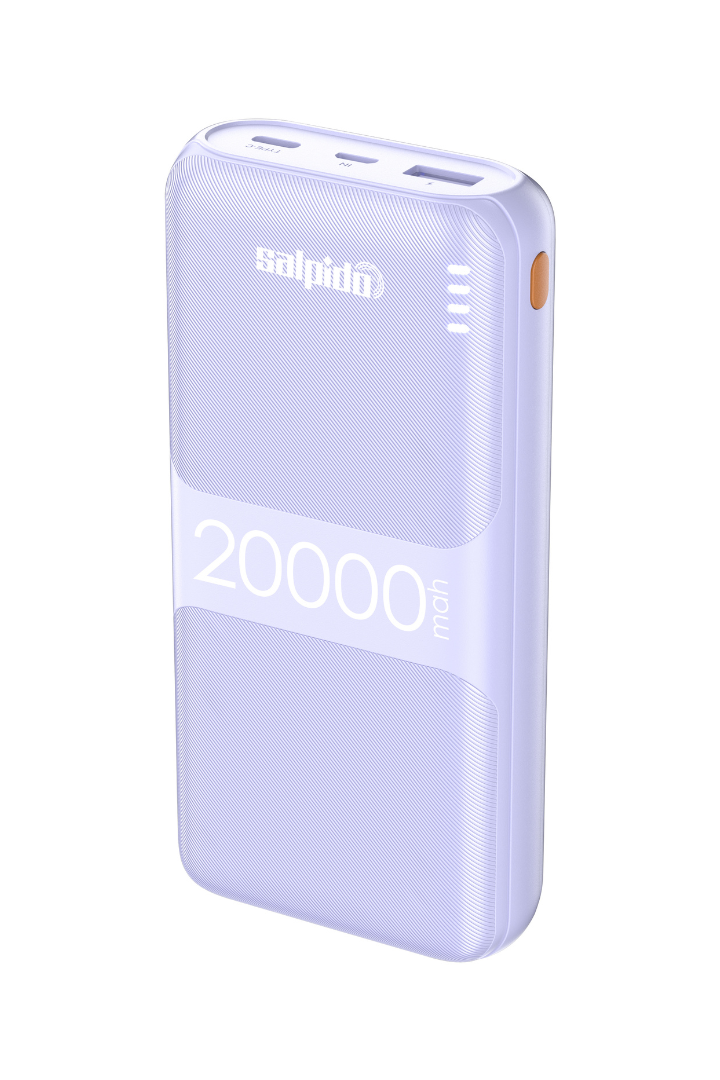

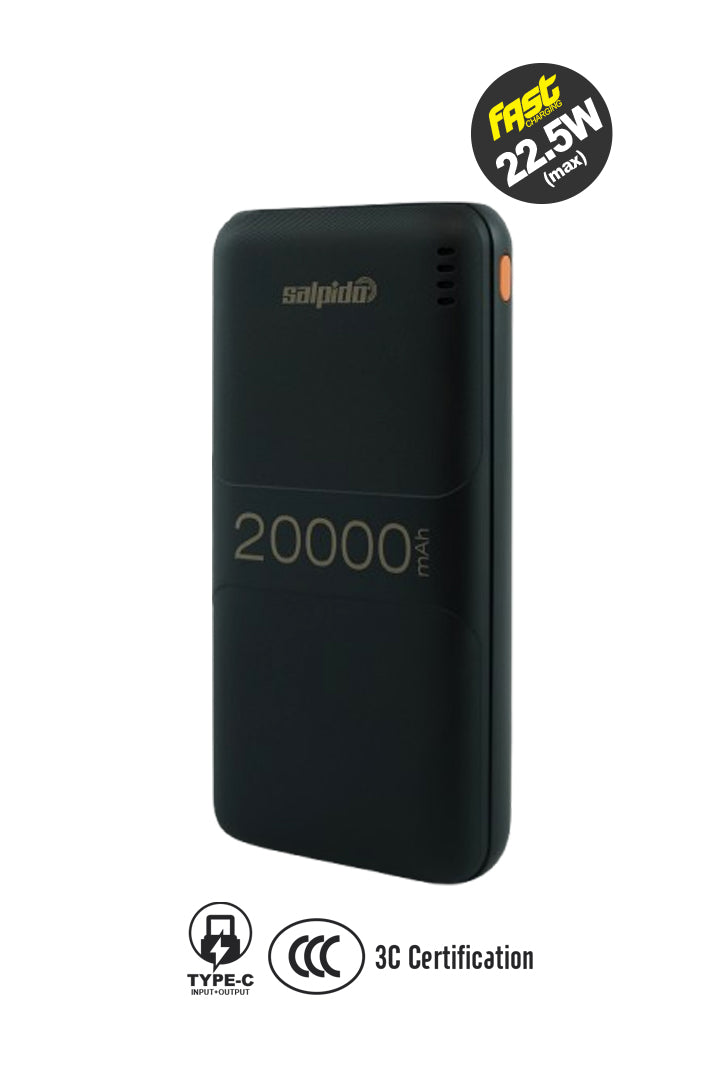

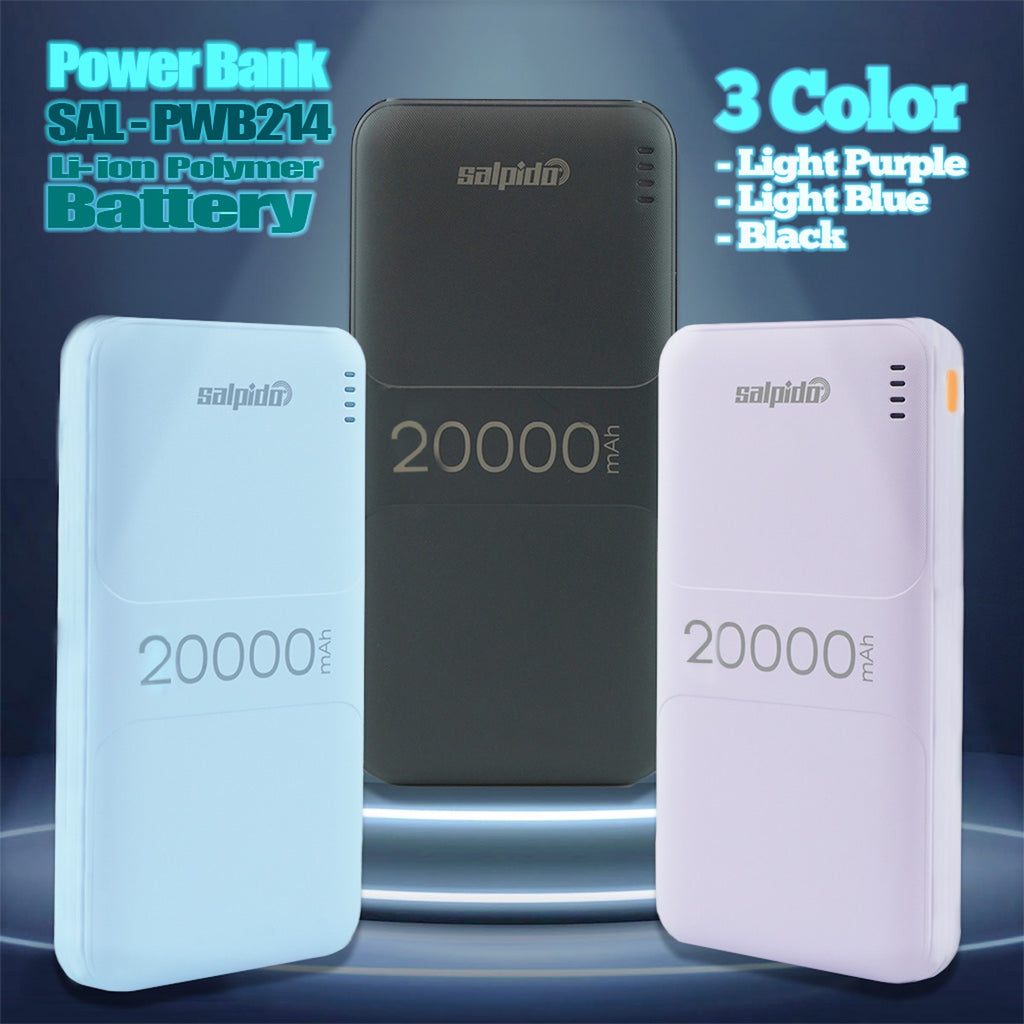

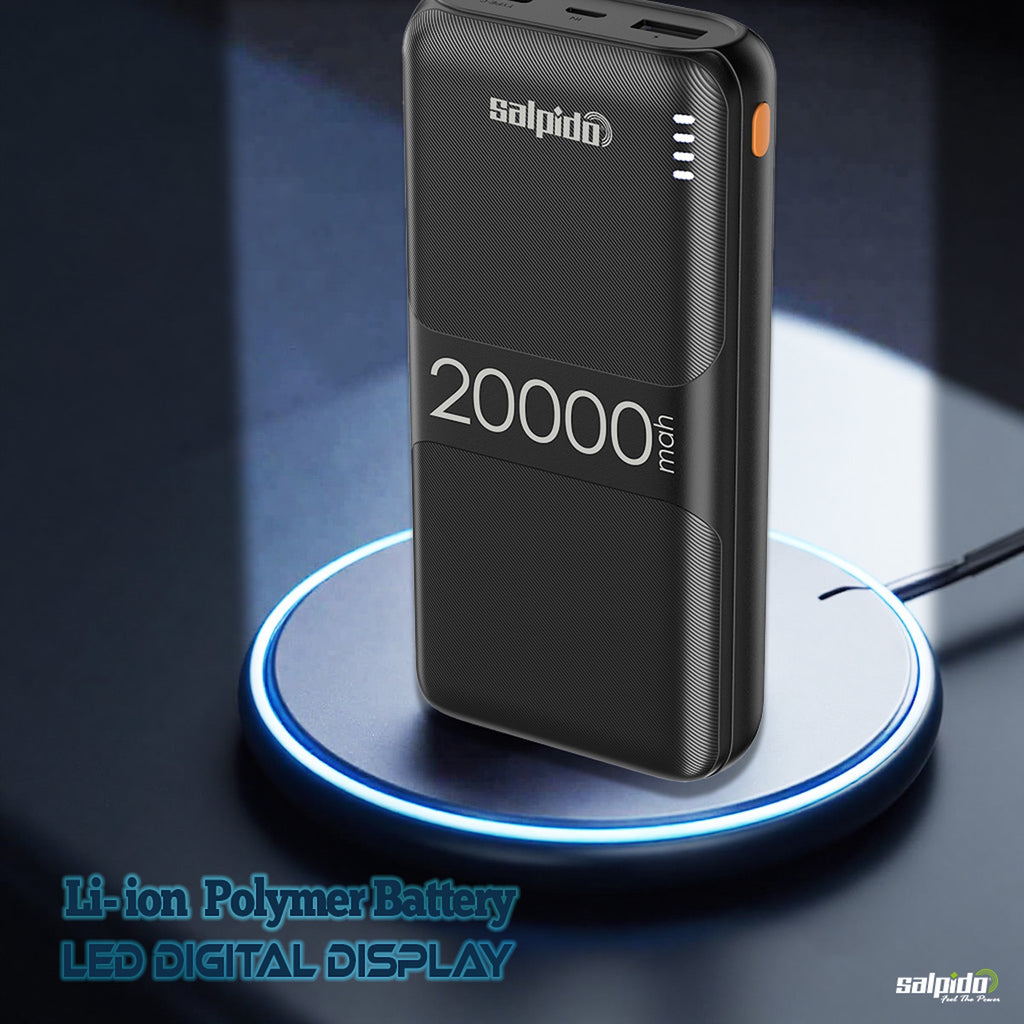

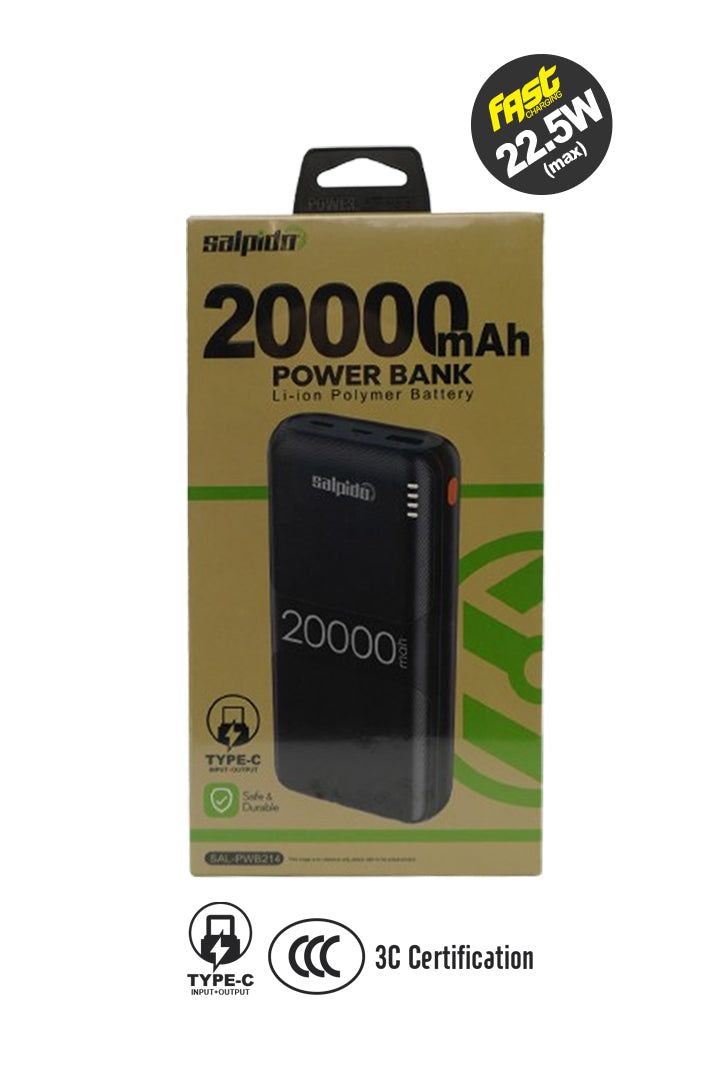

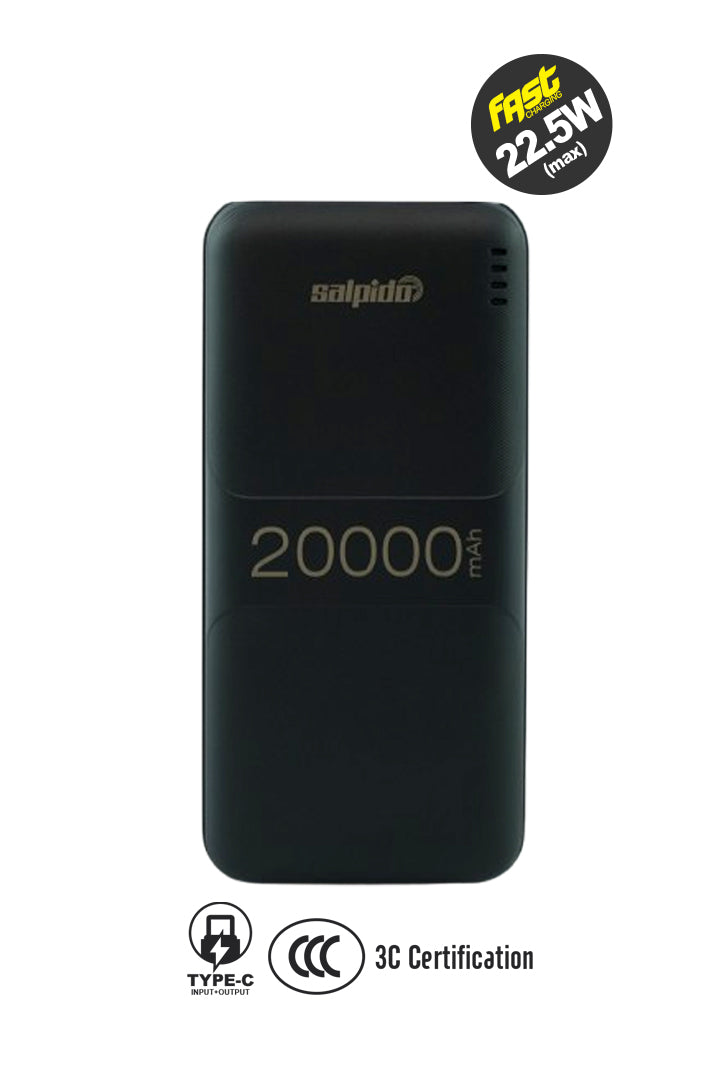

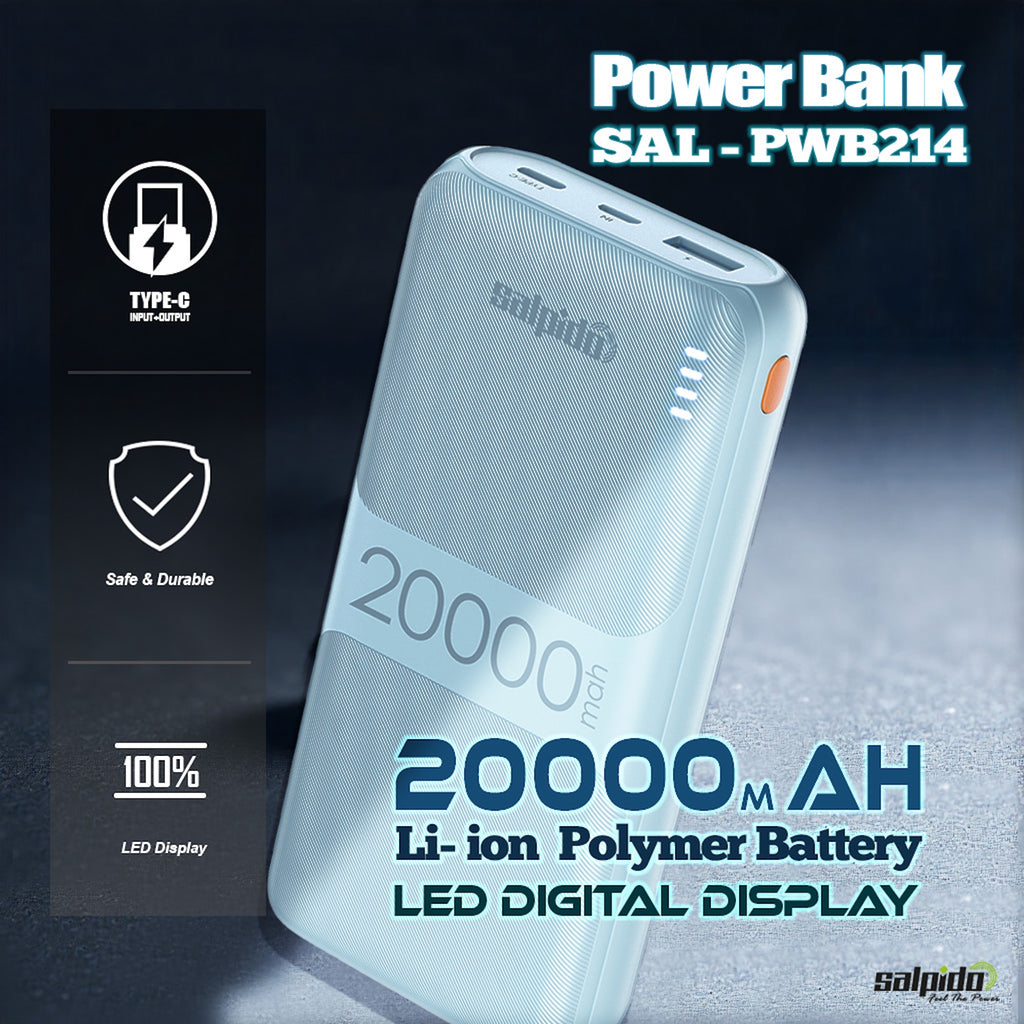

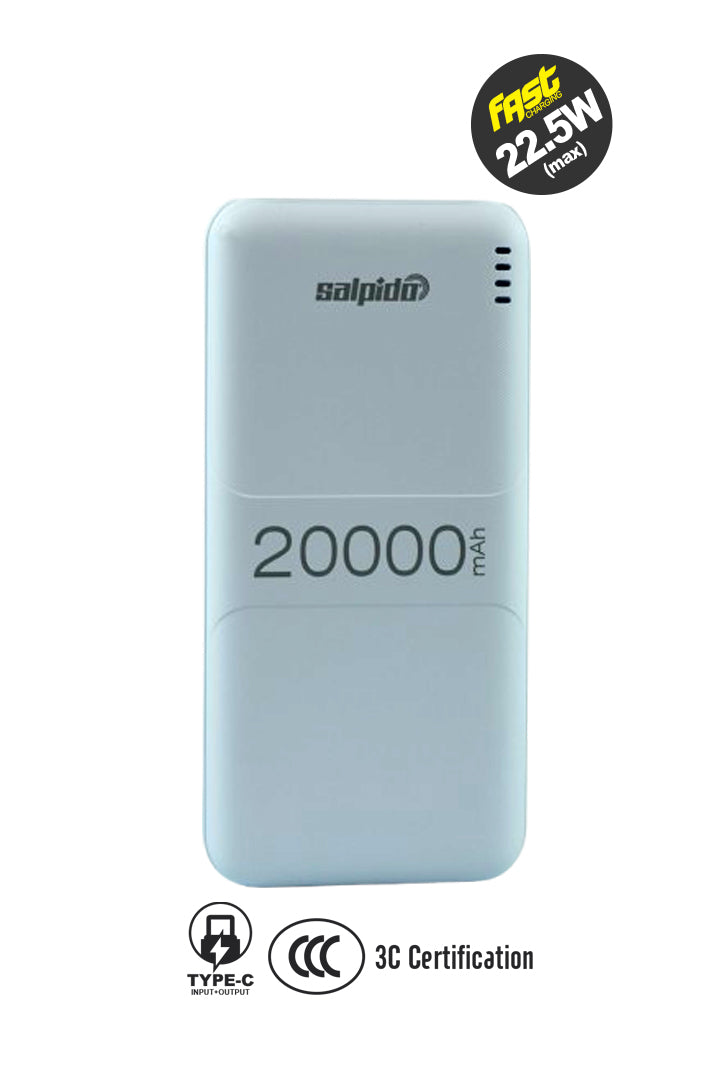

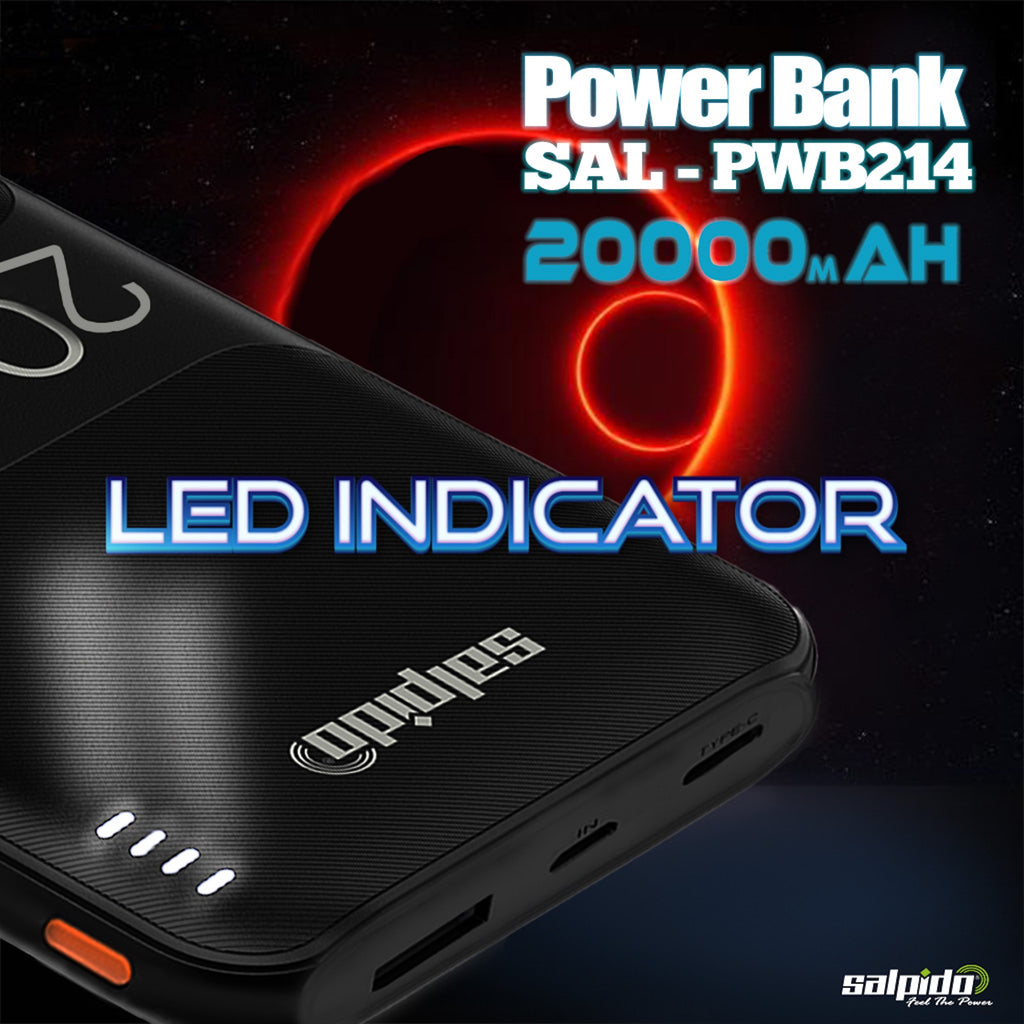

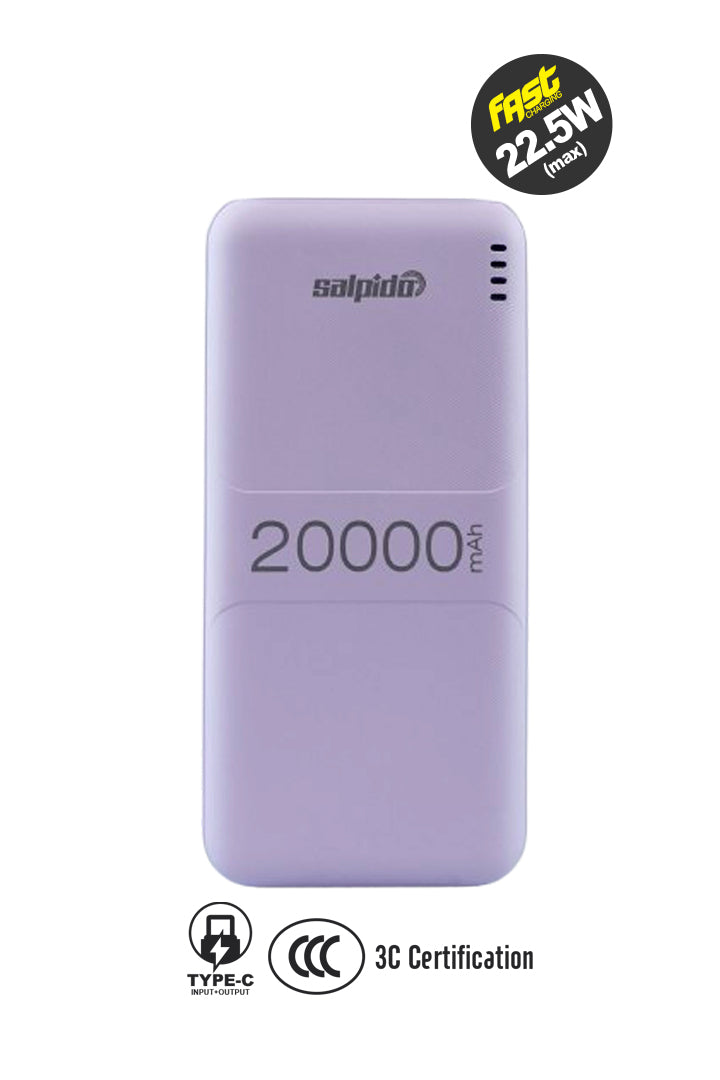

SAL-PWB214

• IC control technology is used to add multiple protection circuits to effectively protect and prolong the service life of lithium batteries.
• It has multiple protection functions of overcharge, overdischarge, overcurrent and shortcircuit protection.
• With 2.0A high current charging, 1A and 2.1A dual output.
• Load automatic identification (plug and charge).

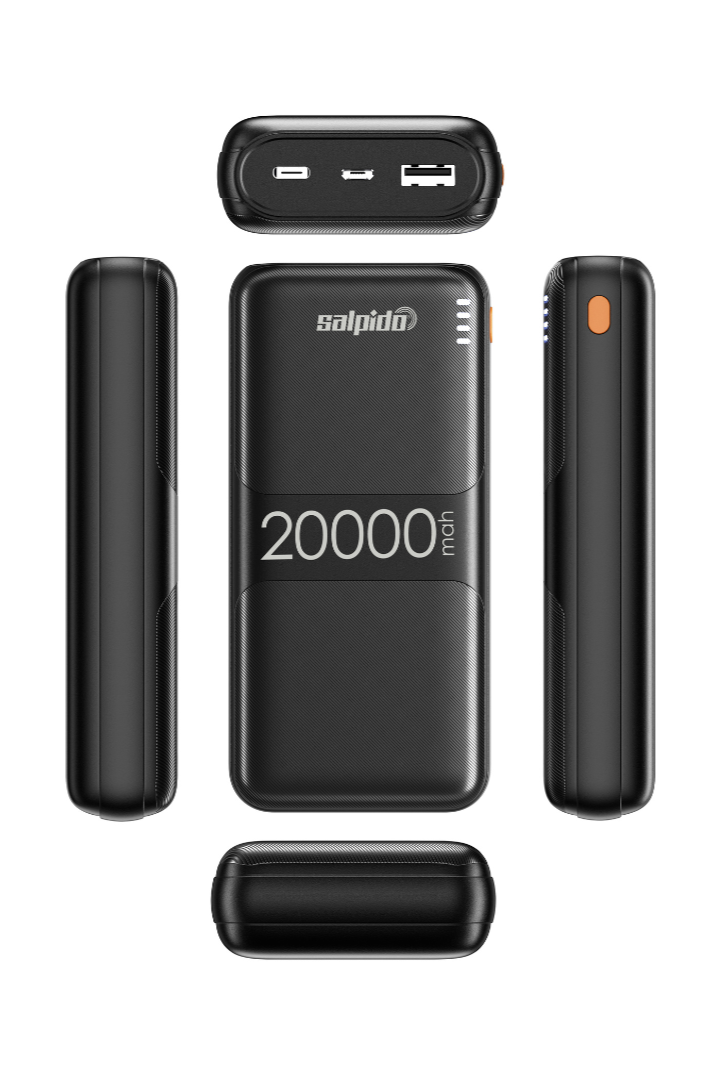

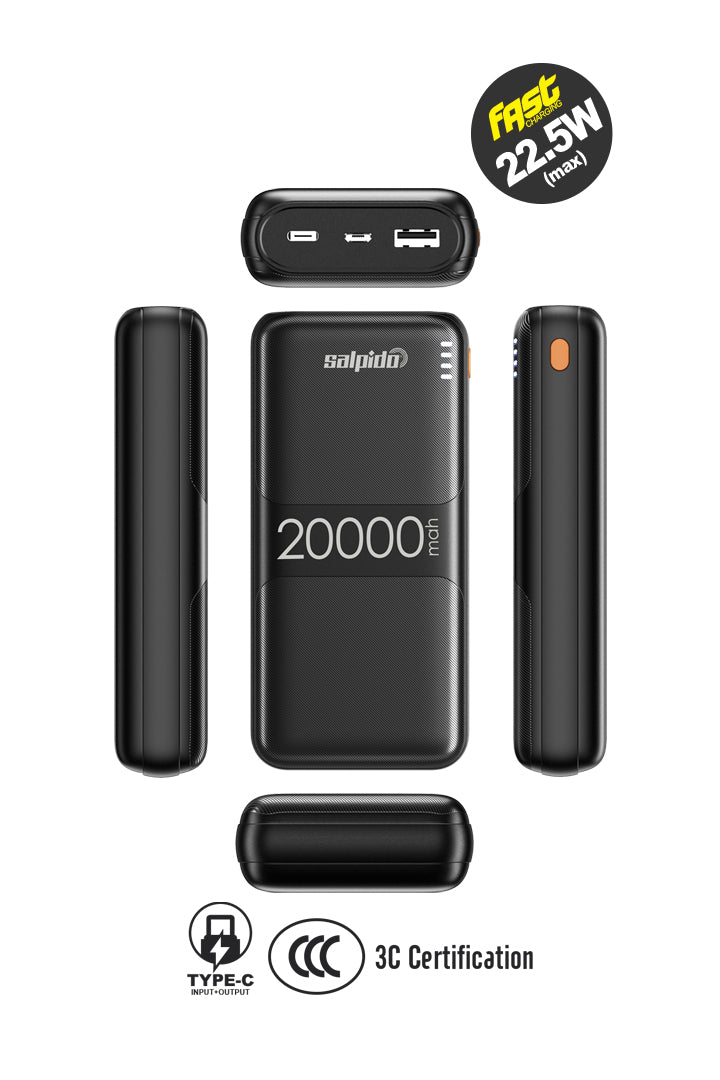

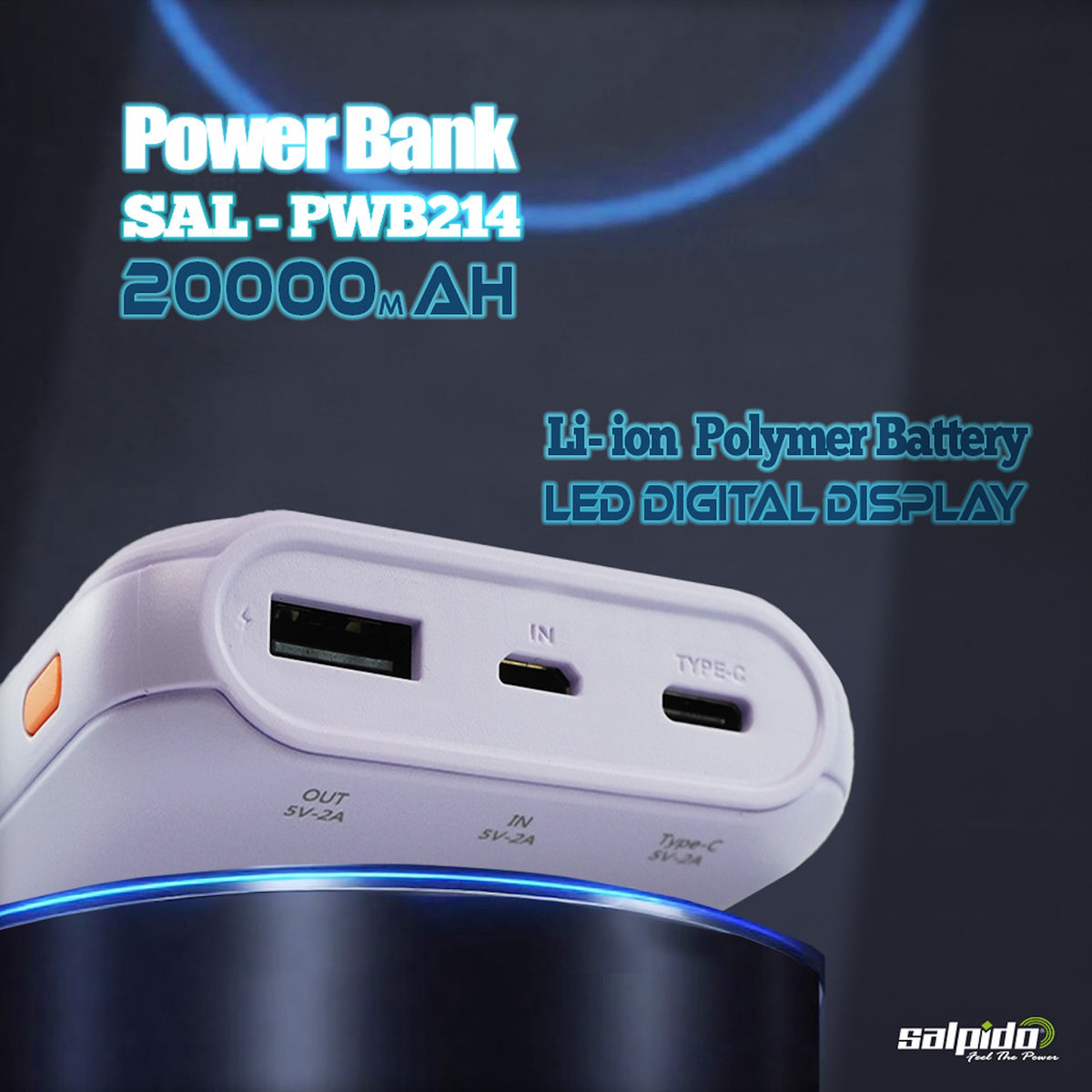

• MICRO input and TYPEC input+output charging ports.


Description

• Capacity: 20000mAh
• Input voltage: 4.8V - 5.5V
• Input current: 2000mA
• Charge cutoff current: ≤ 60mA
• USB continuous output current: 2000mA
• USB noload voltage: 4.85.3V
• USB load voltage: 4.755.2V
• Output ripple: ≤ 200mV
• Cell charging cutoff voltage: 4.2V - 4.30V
• Cell discharge cutoff voltage: 2.5  3V
• Selfconsumption current: ≤ 100uA
• Efficiency at USB output 1A: 82%  87%
• Operating temperature: 10℃—— 60℃
• Storage temperature: 25℃—— 45℃
• Relative humidity: ≤ 90%RH
• Short circuit protection: YES
