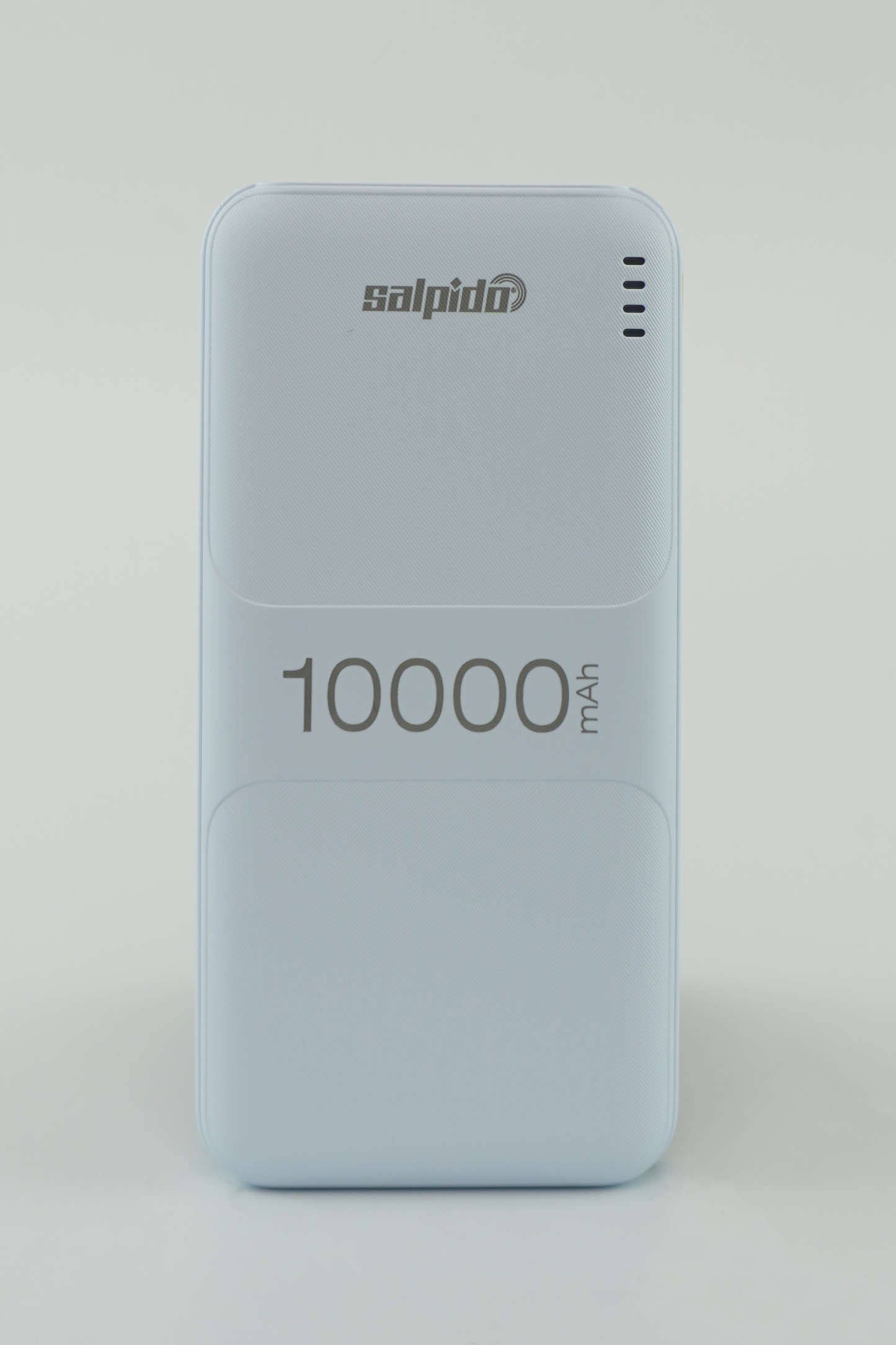

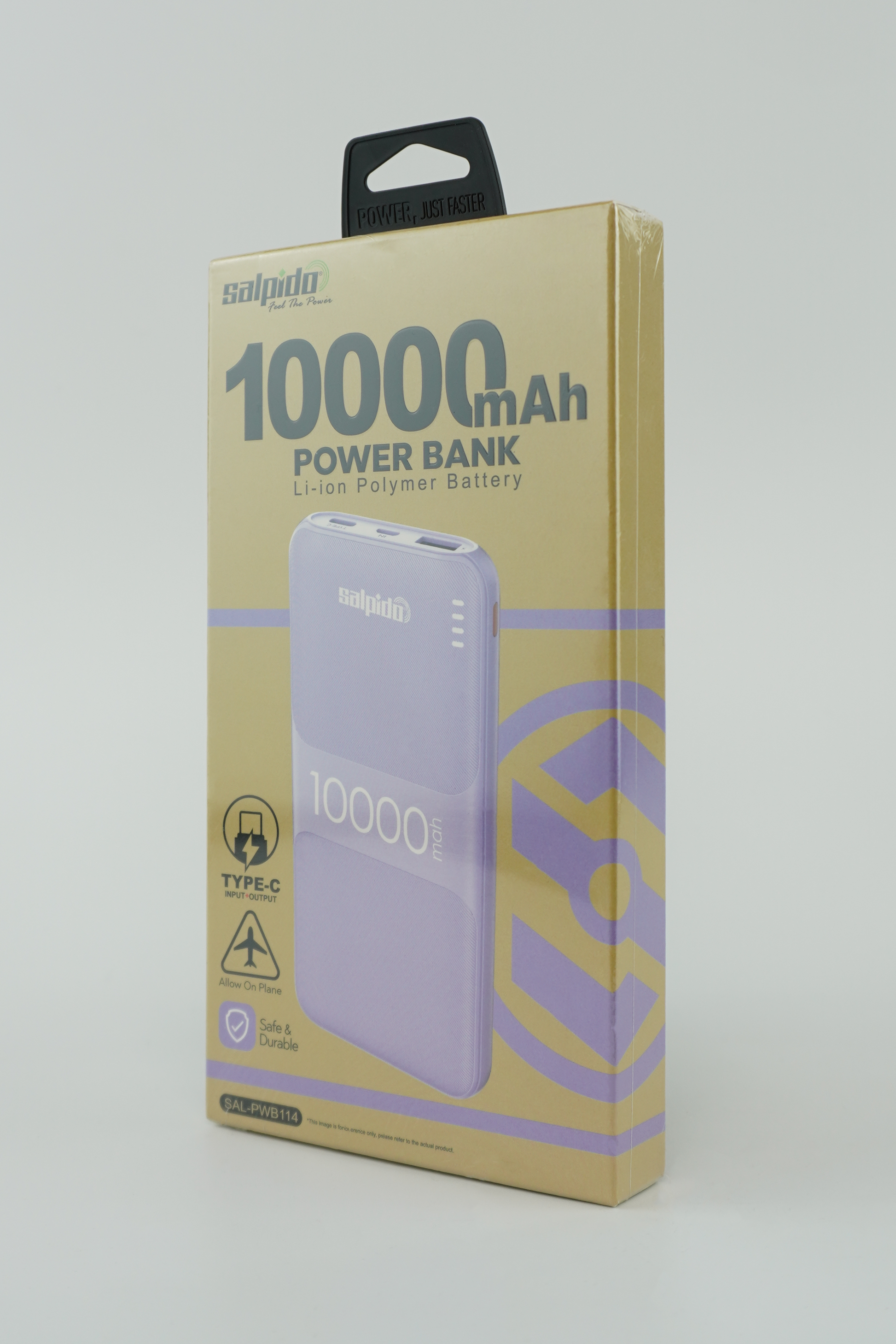

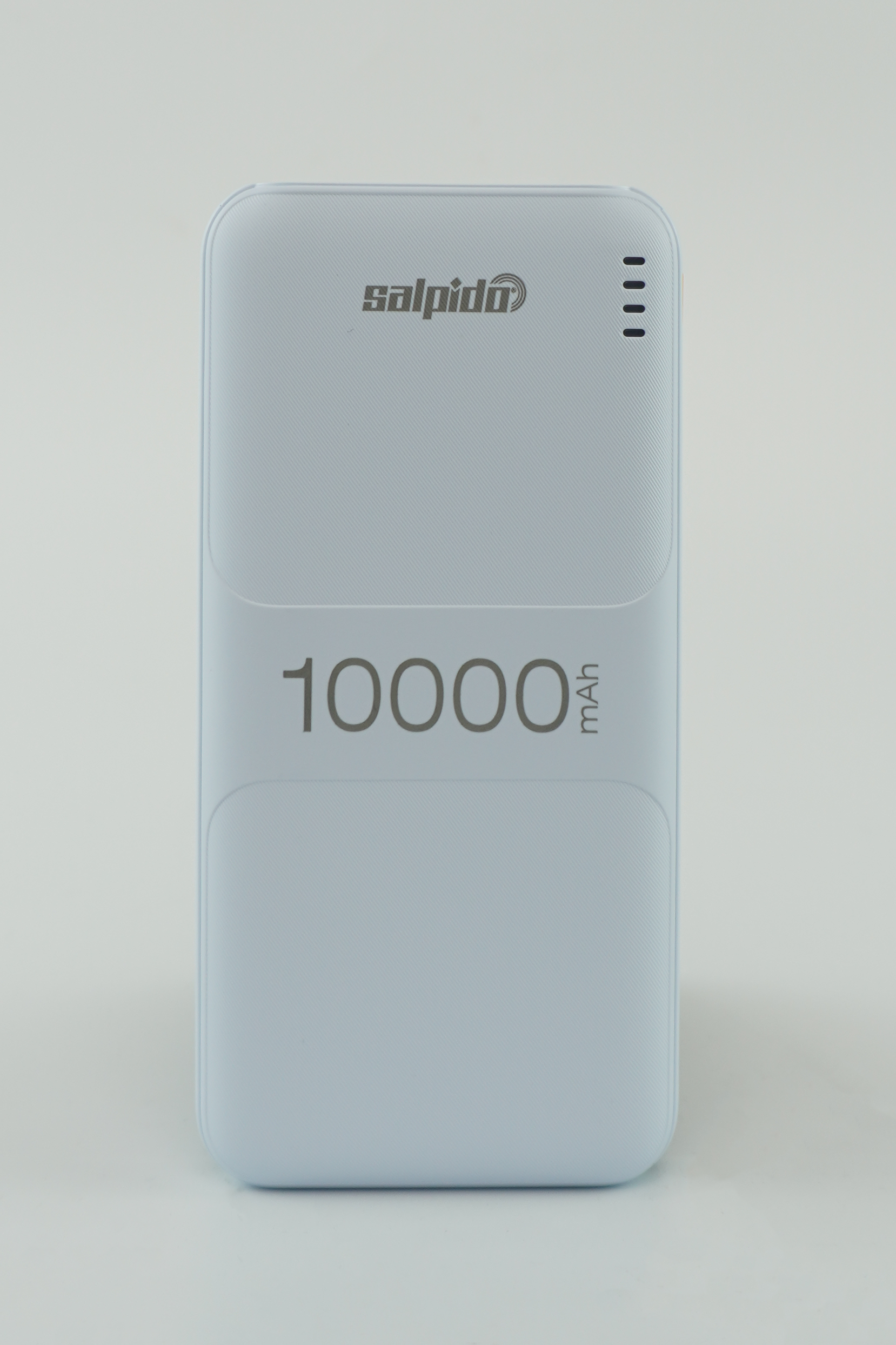

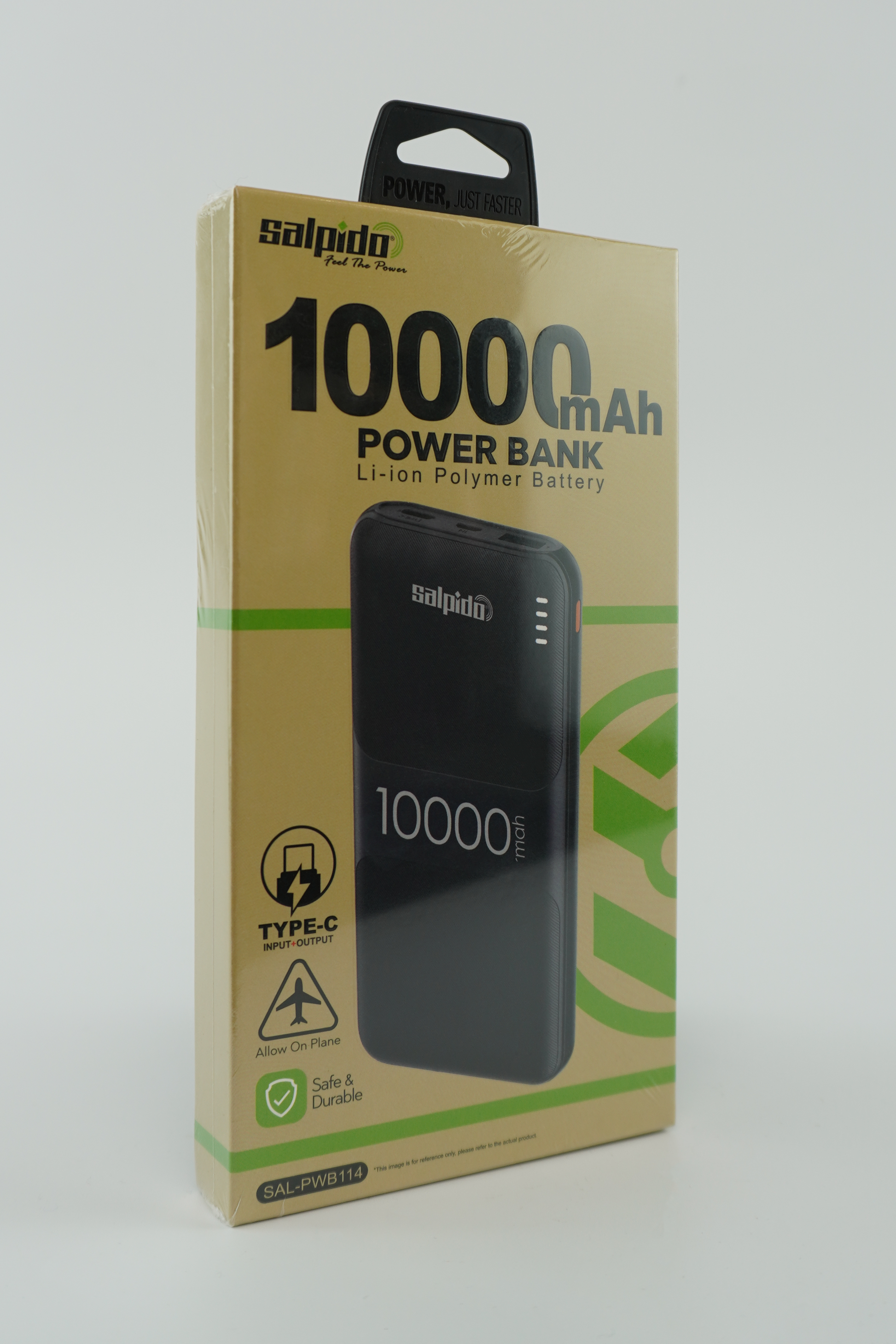

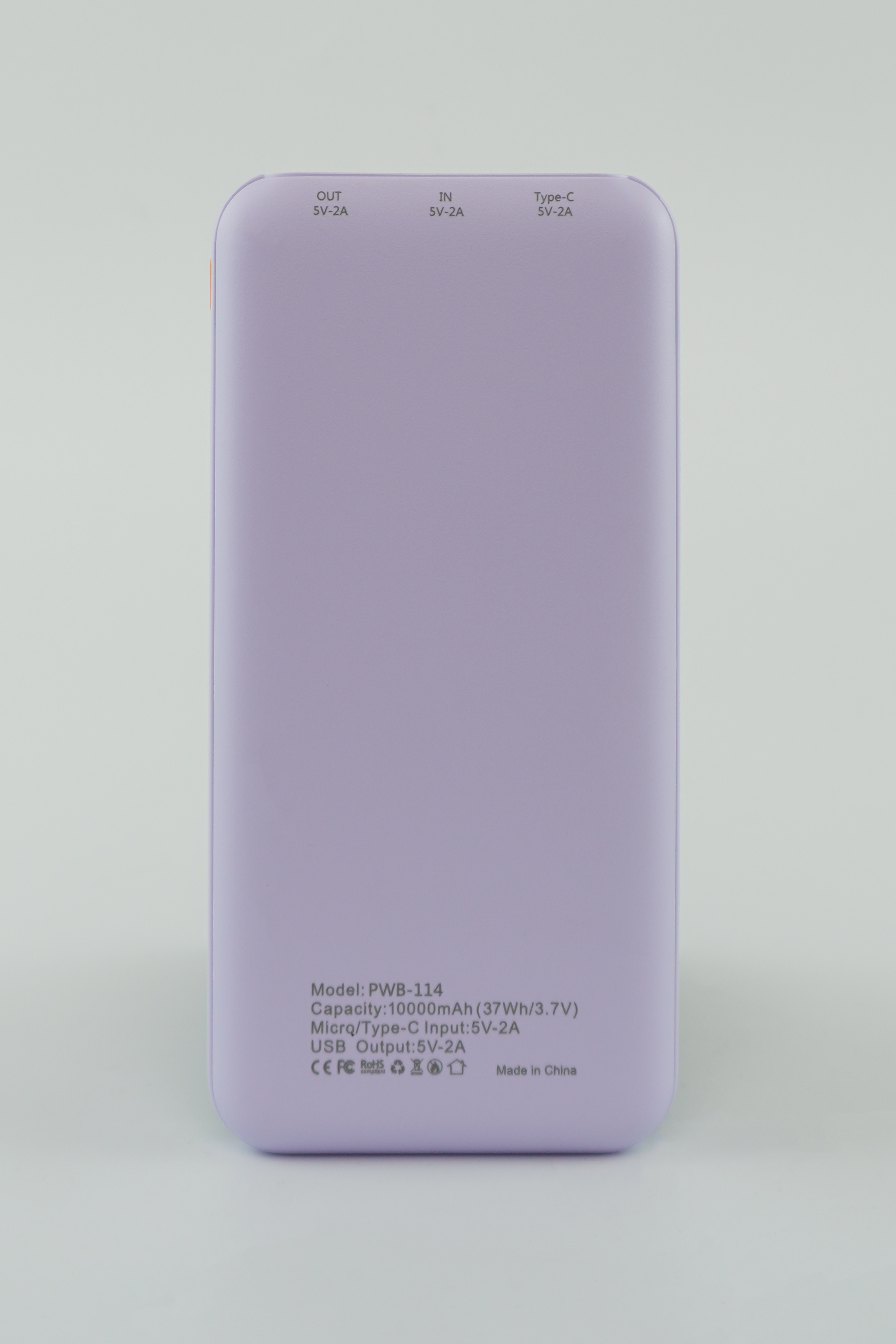

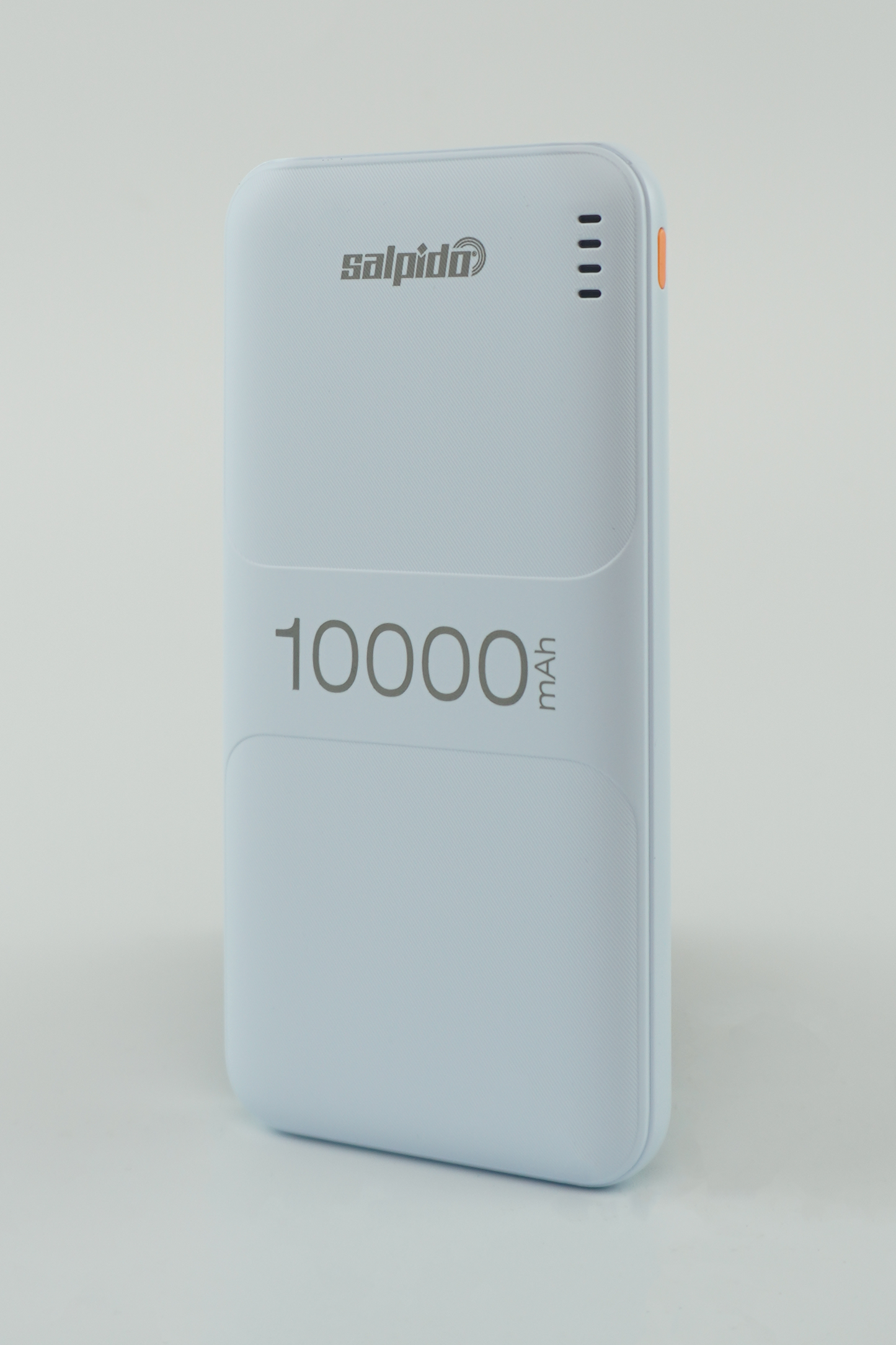

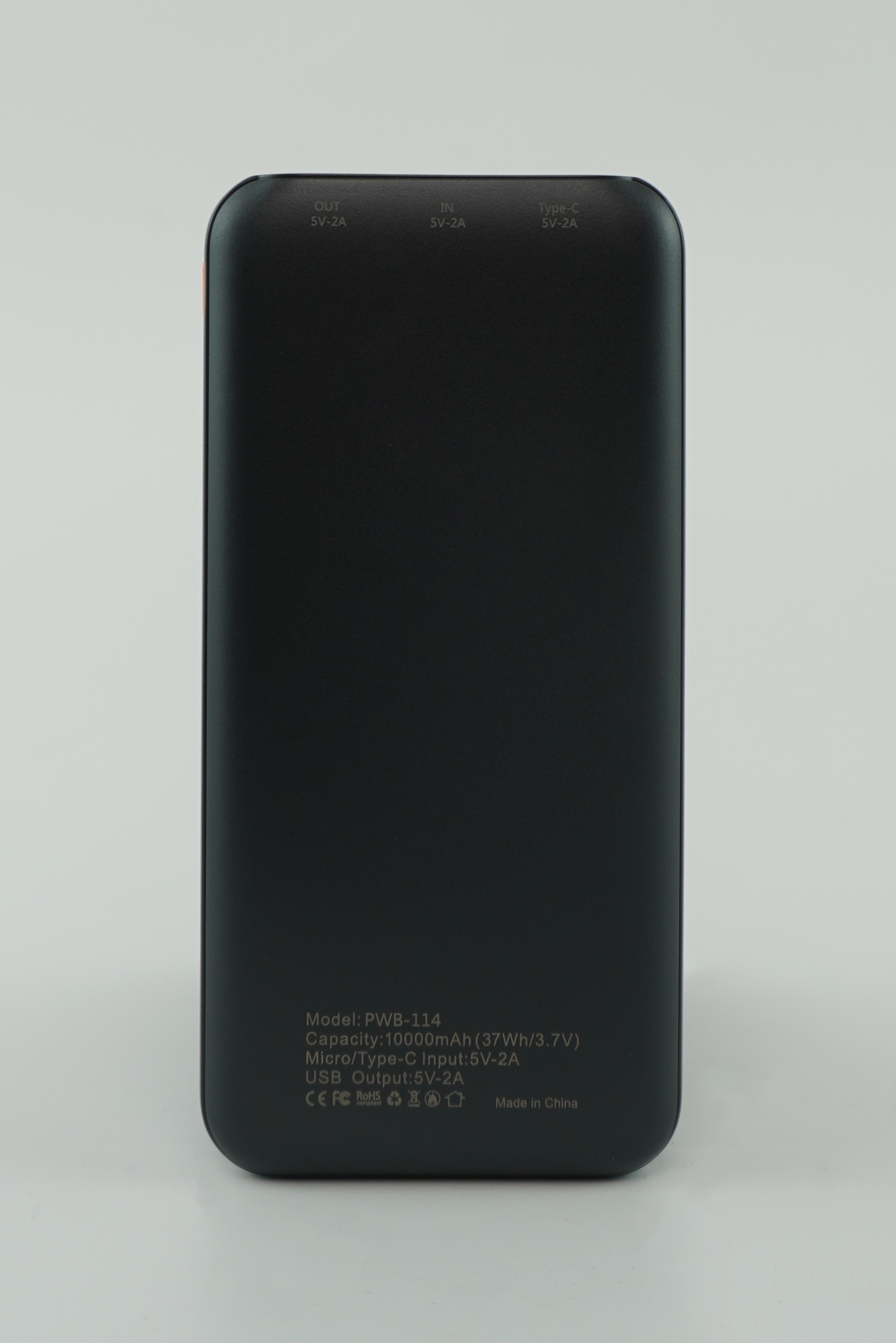

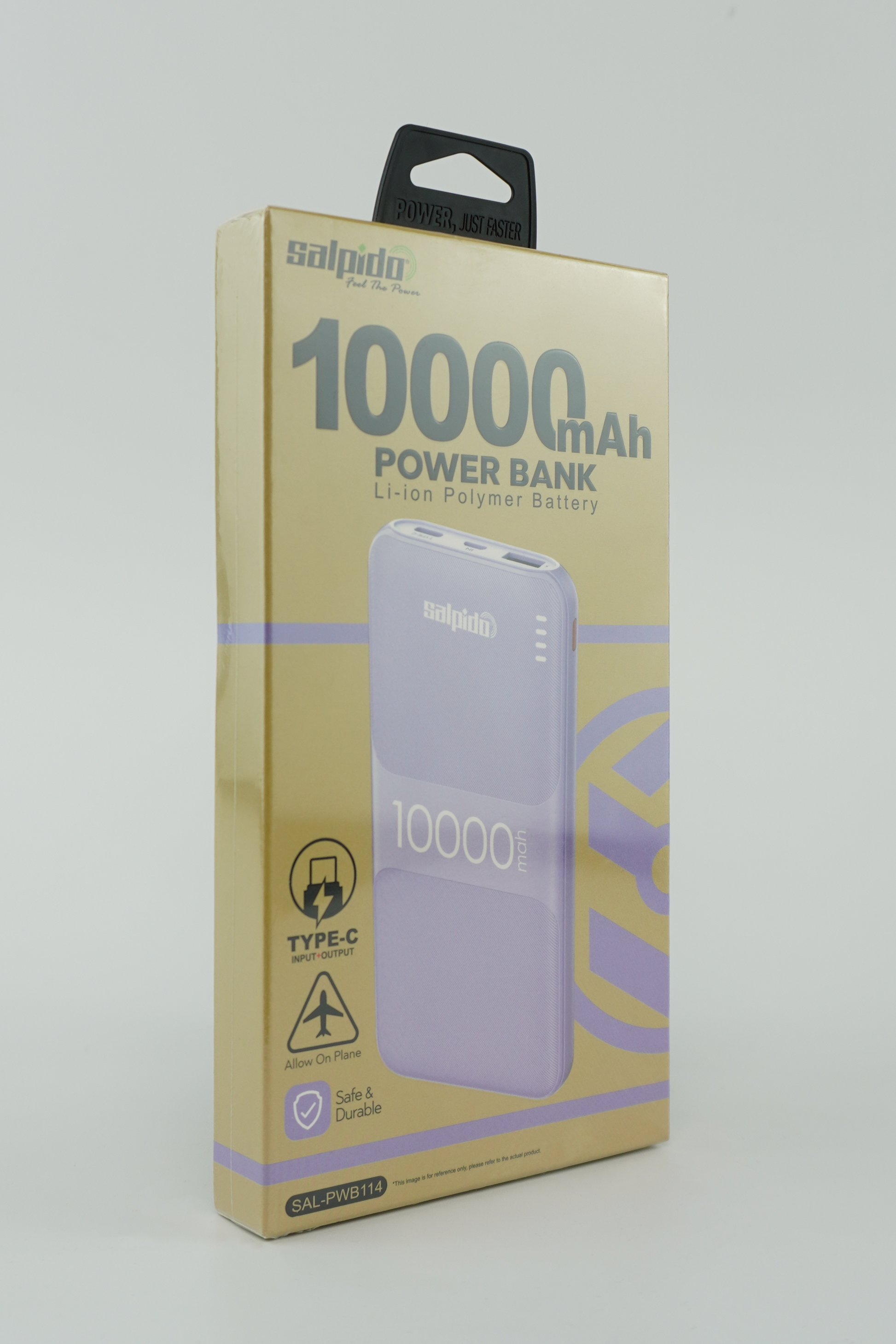

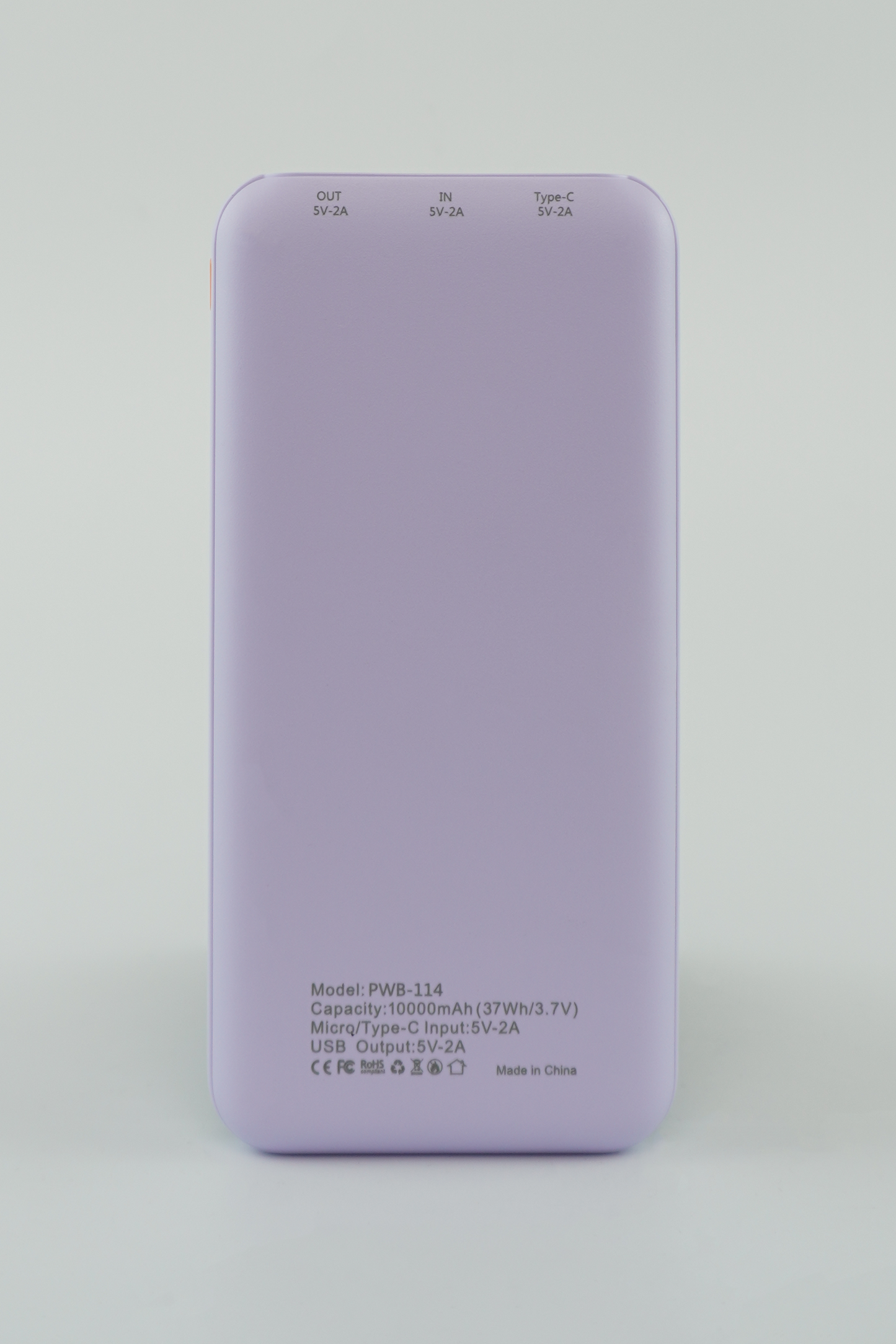

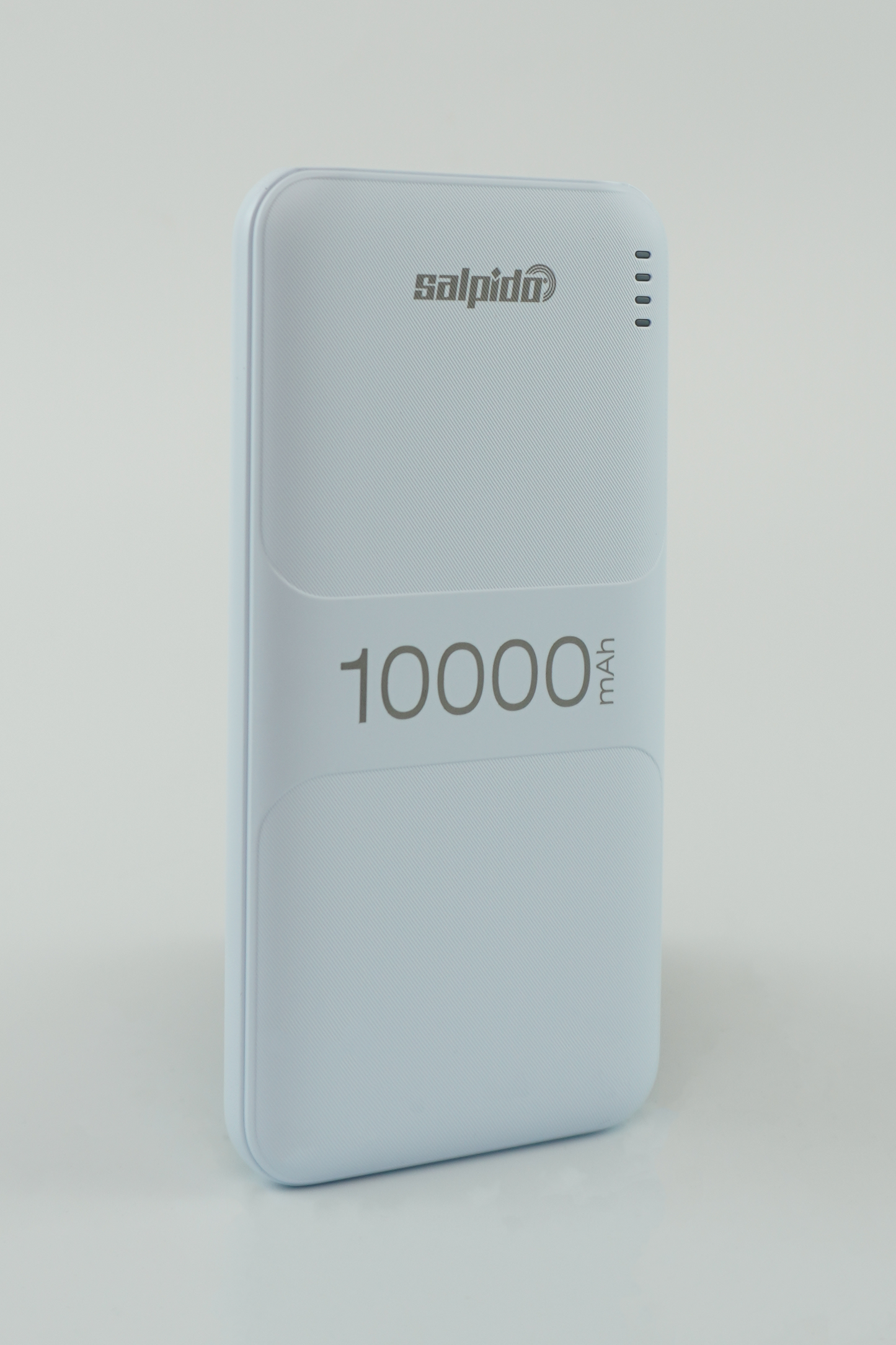

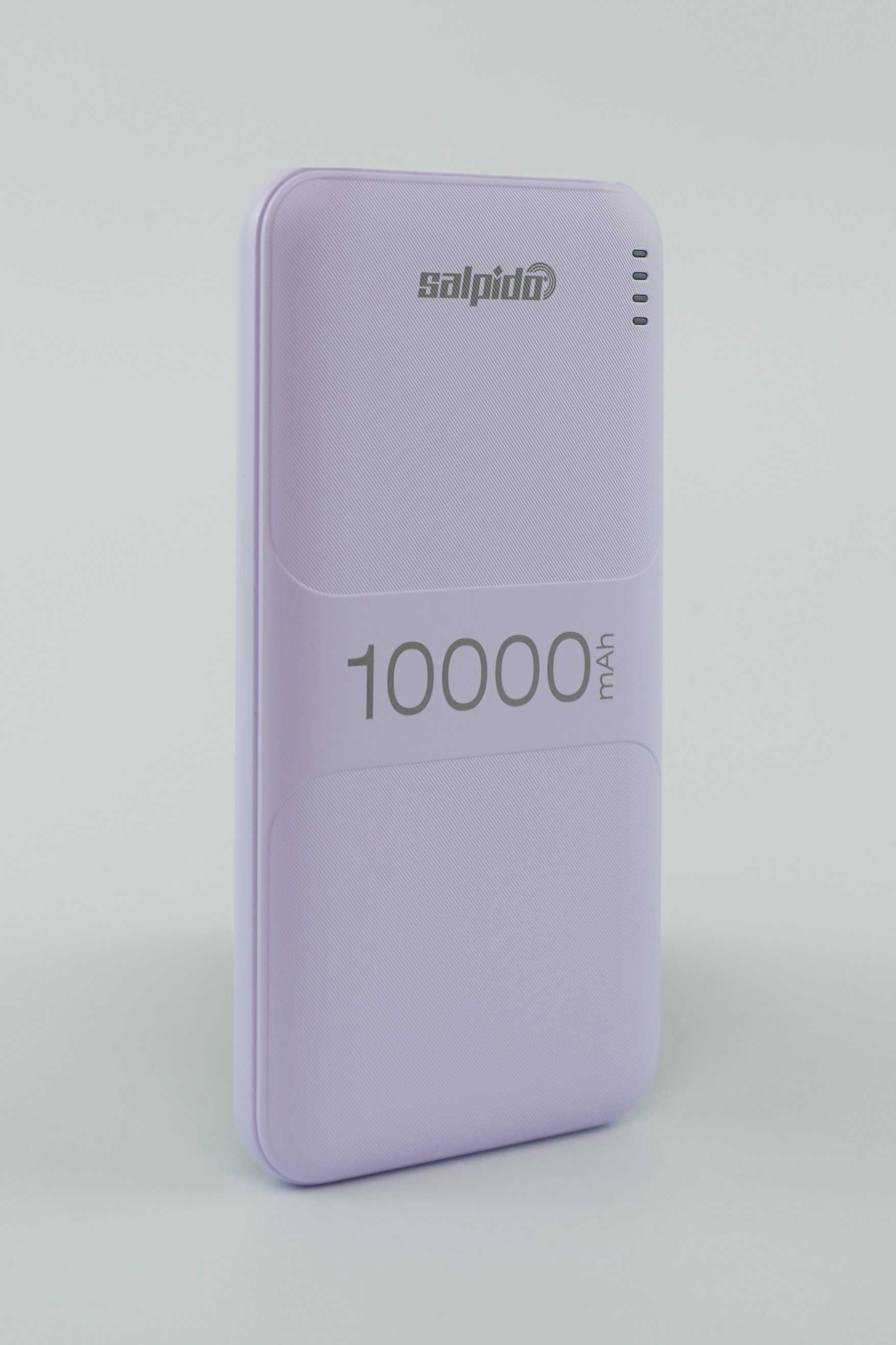

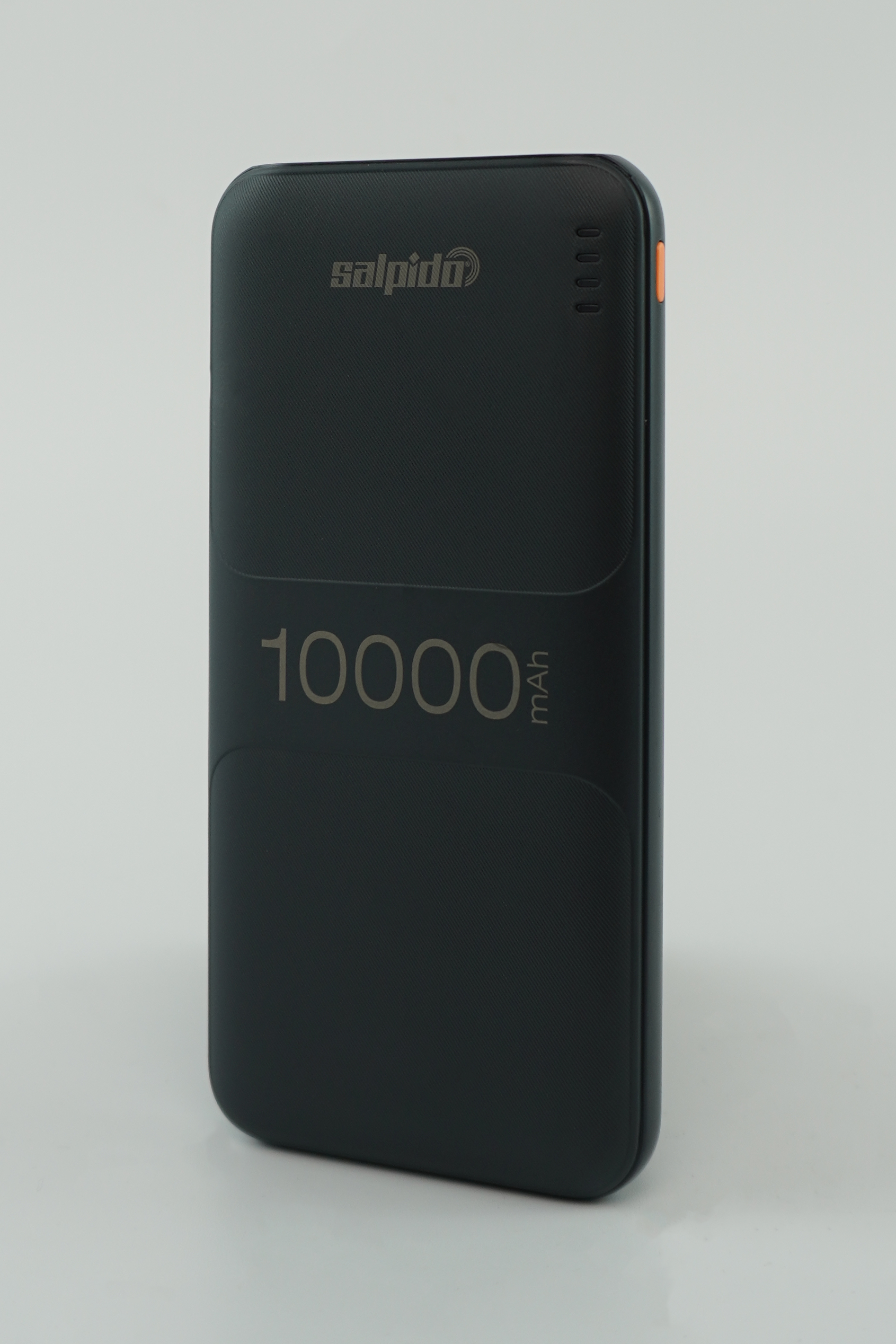

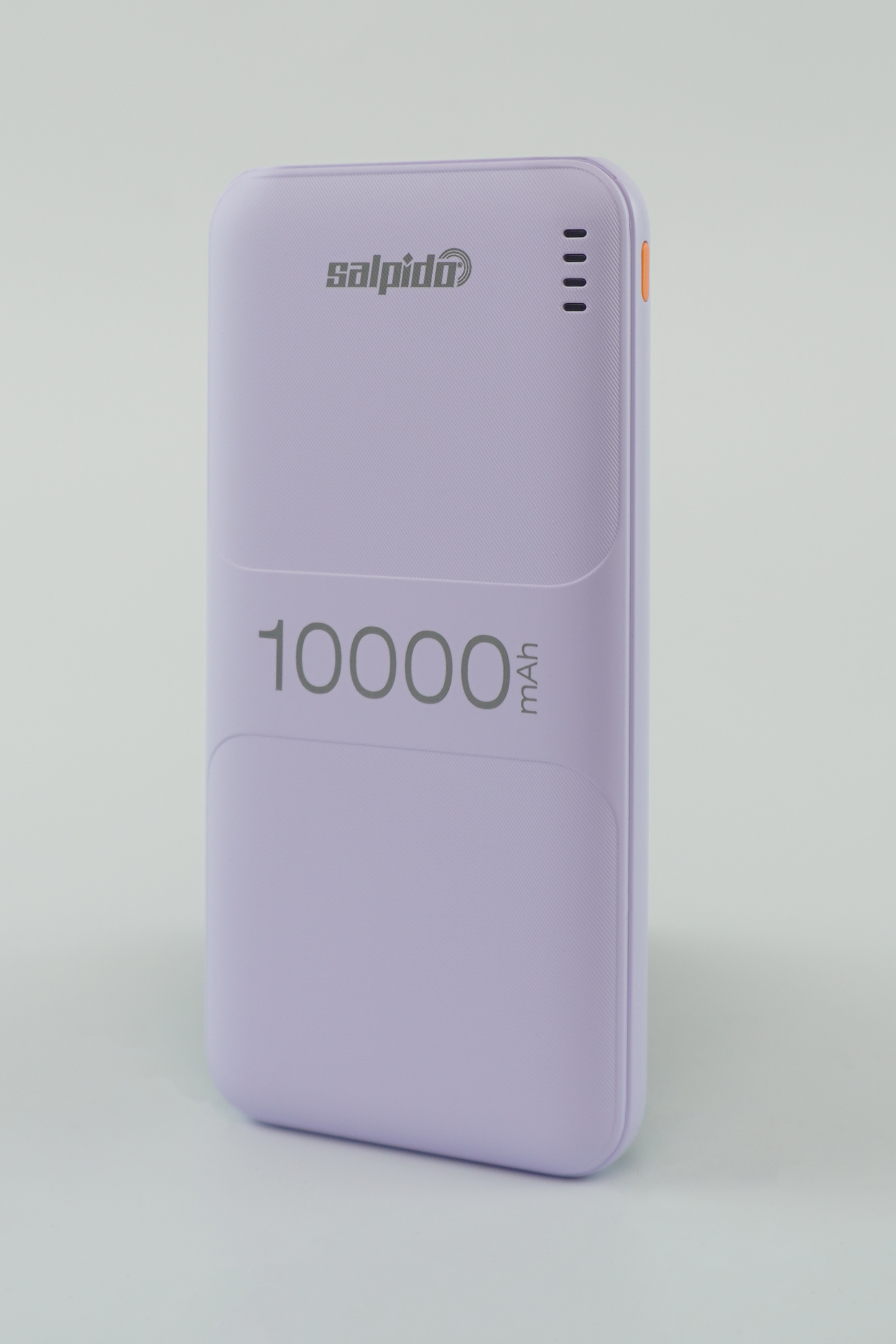

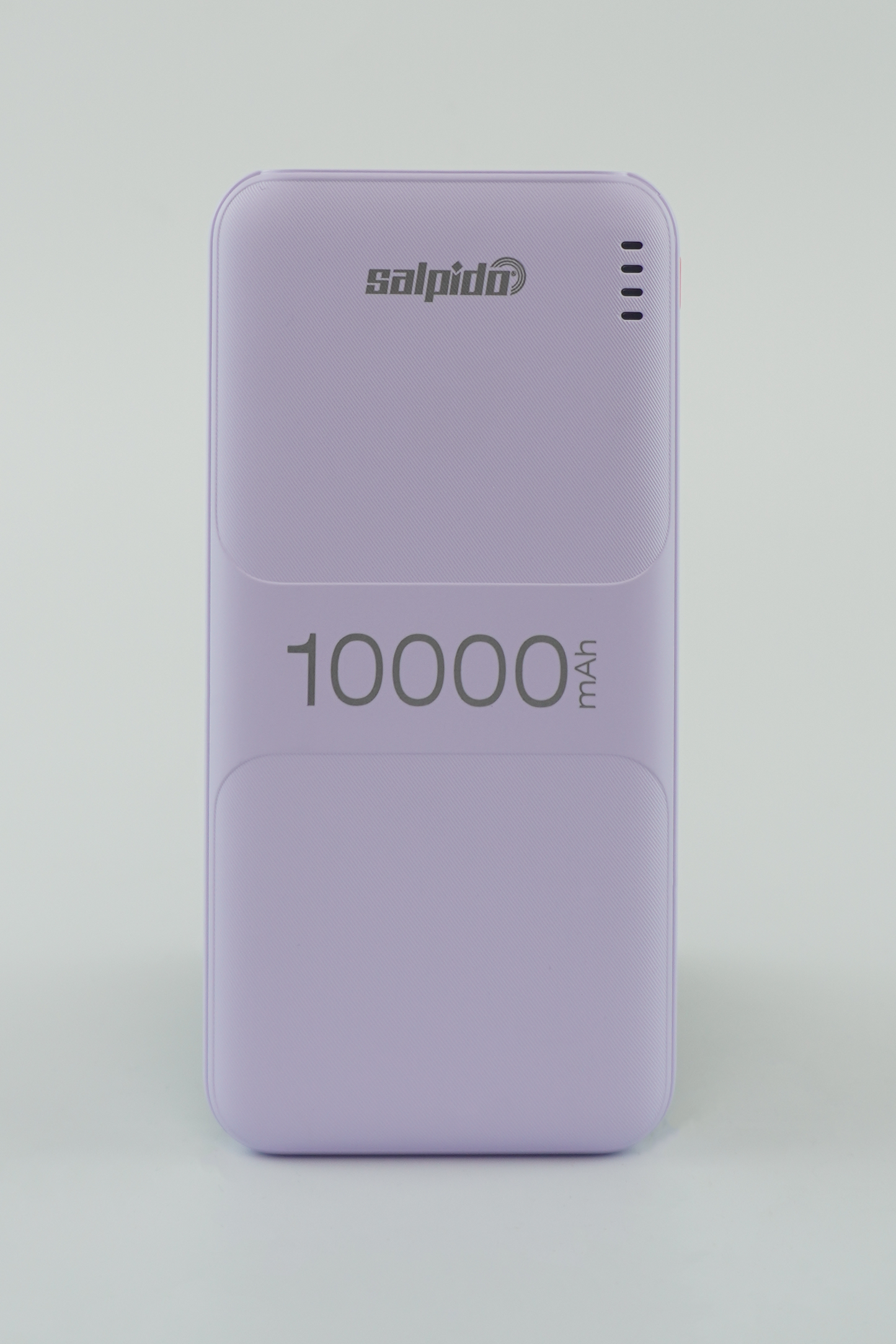

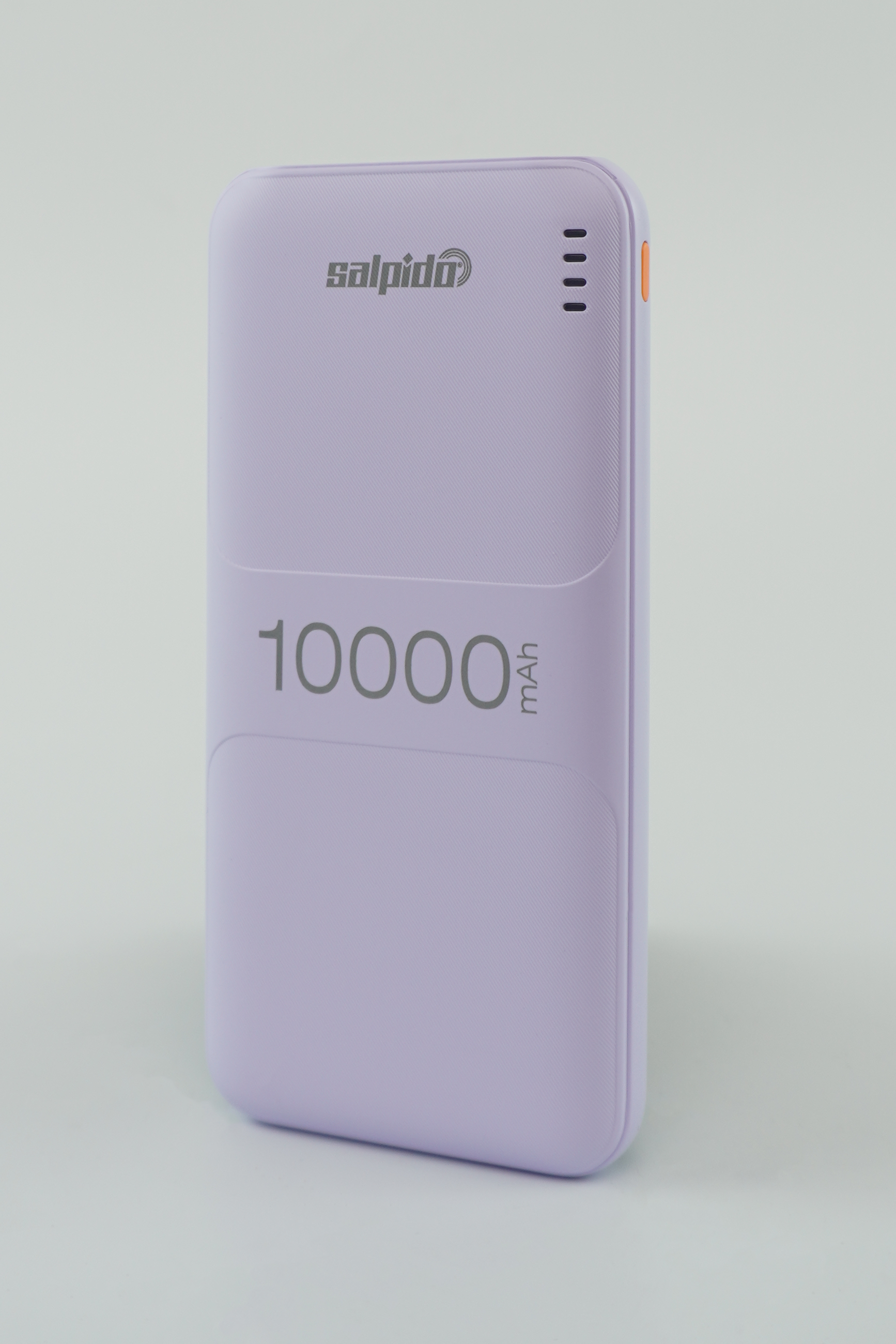

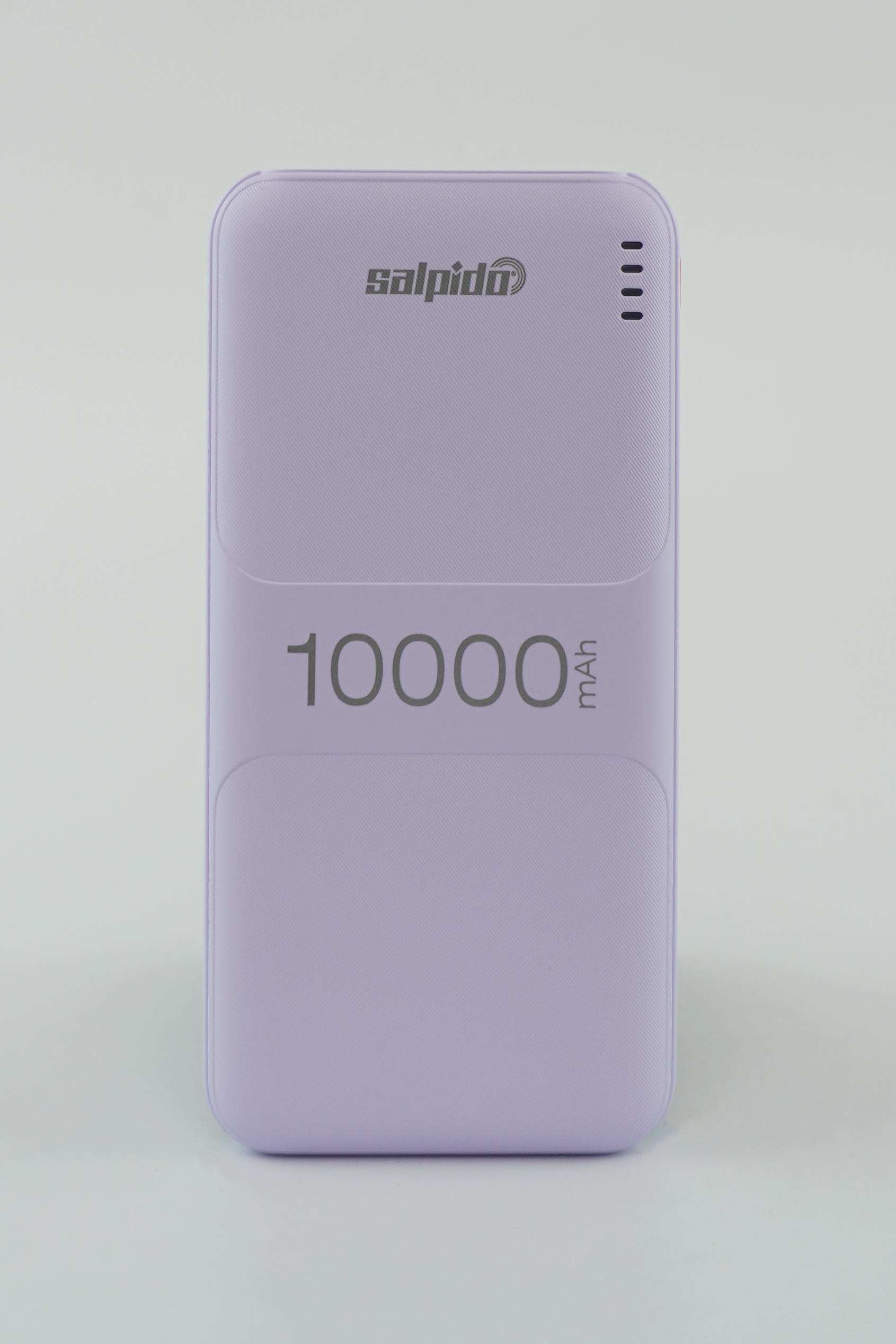

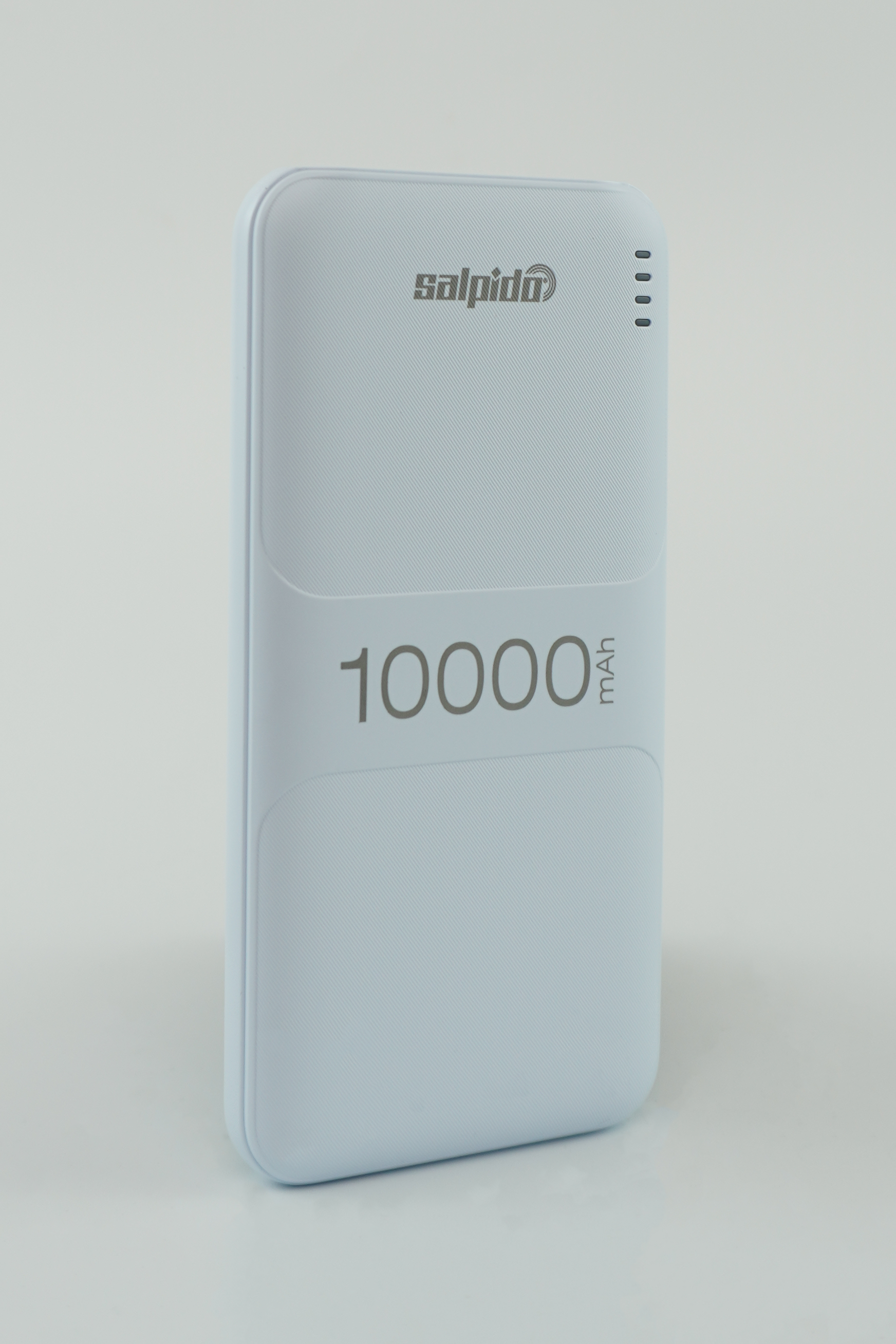

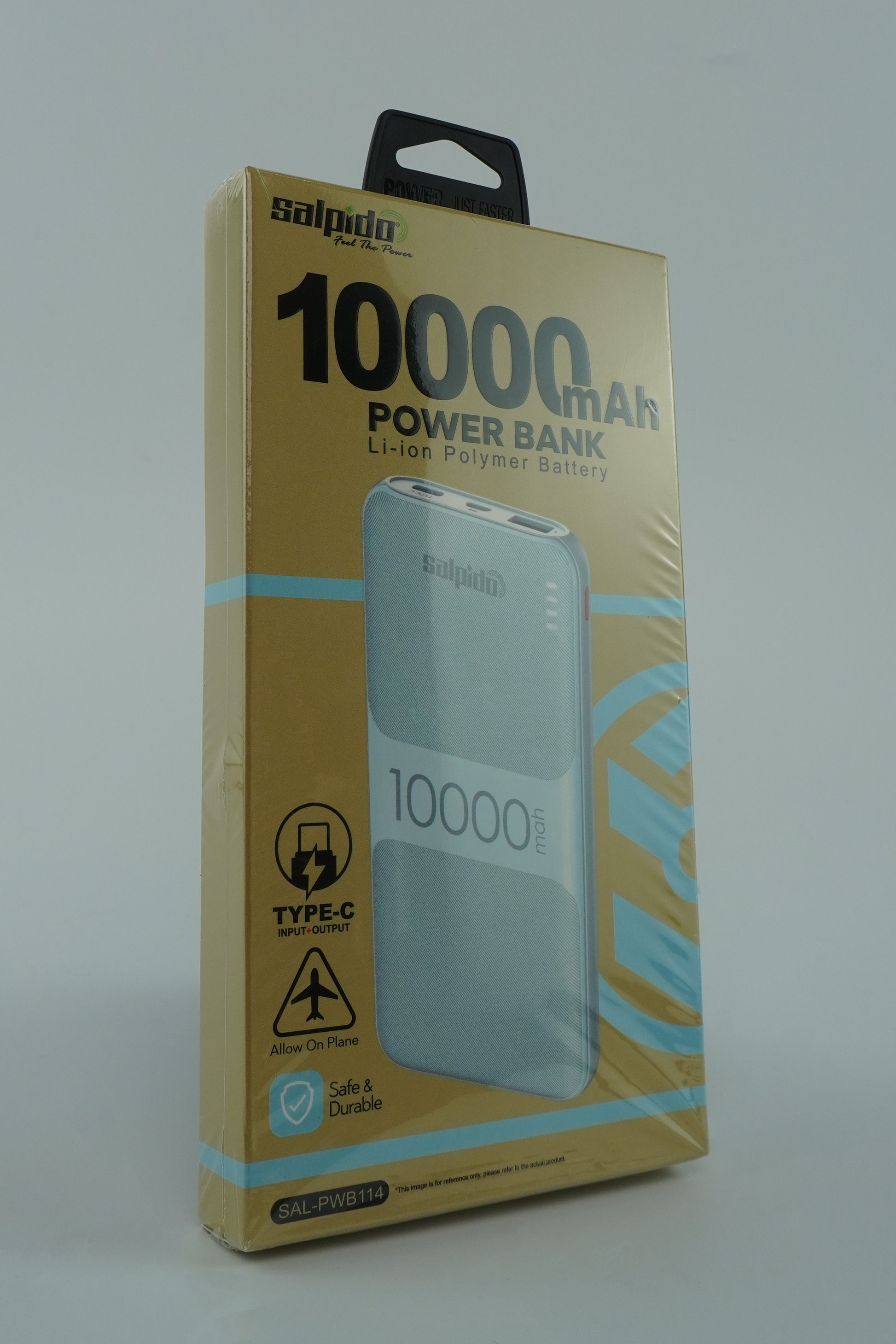

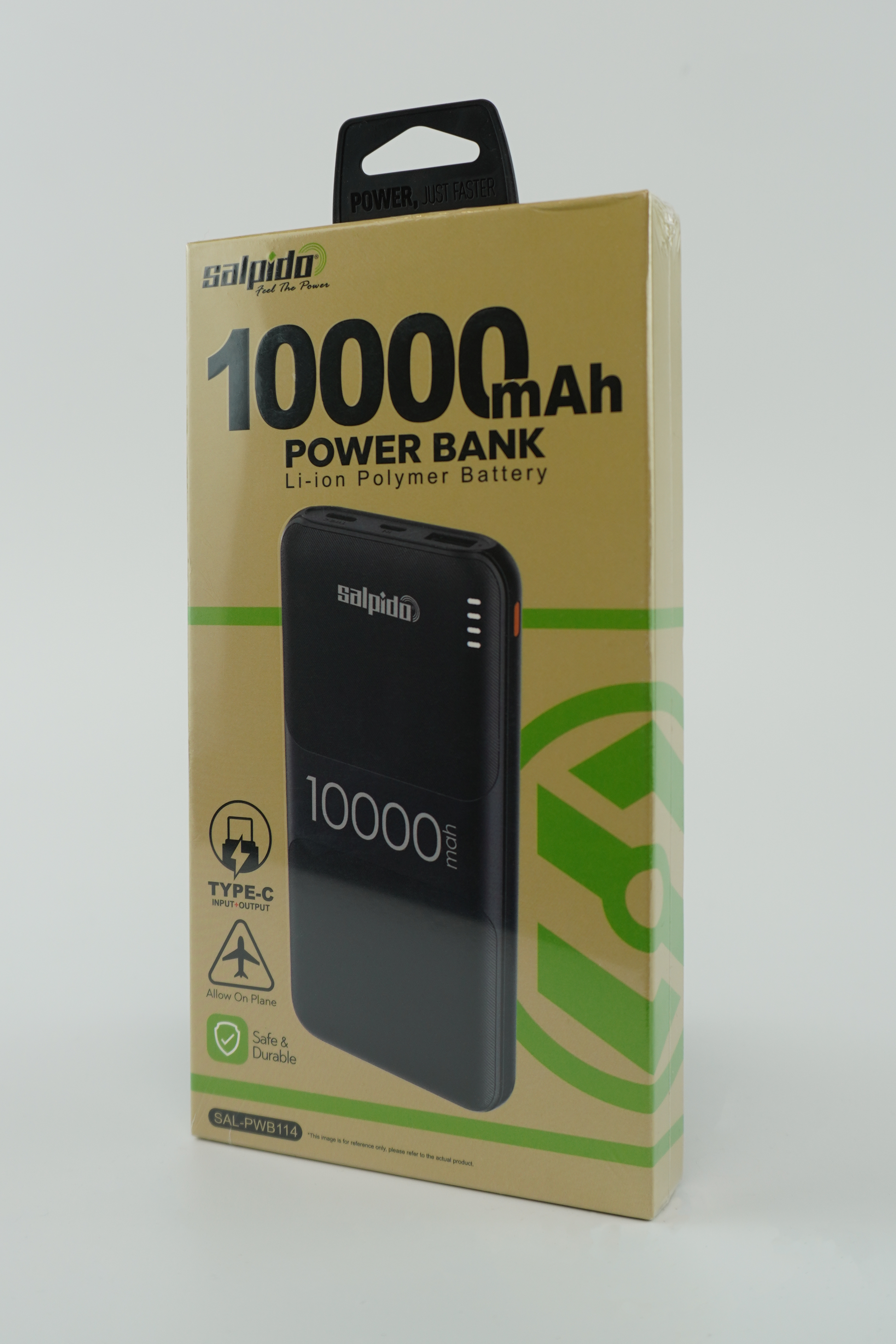

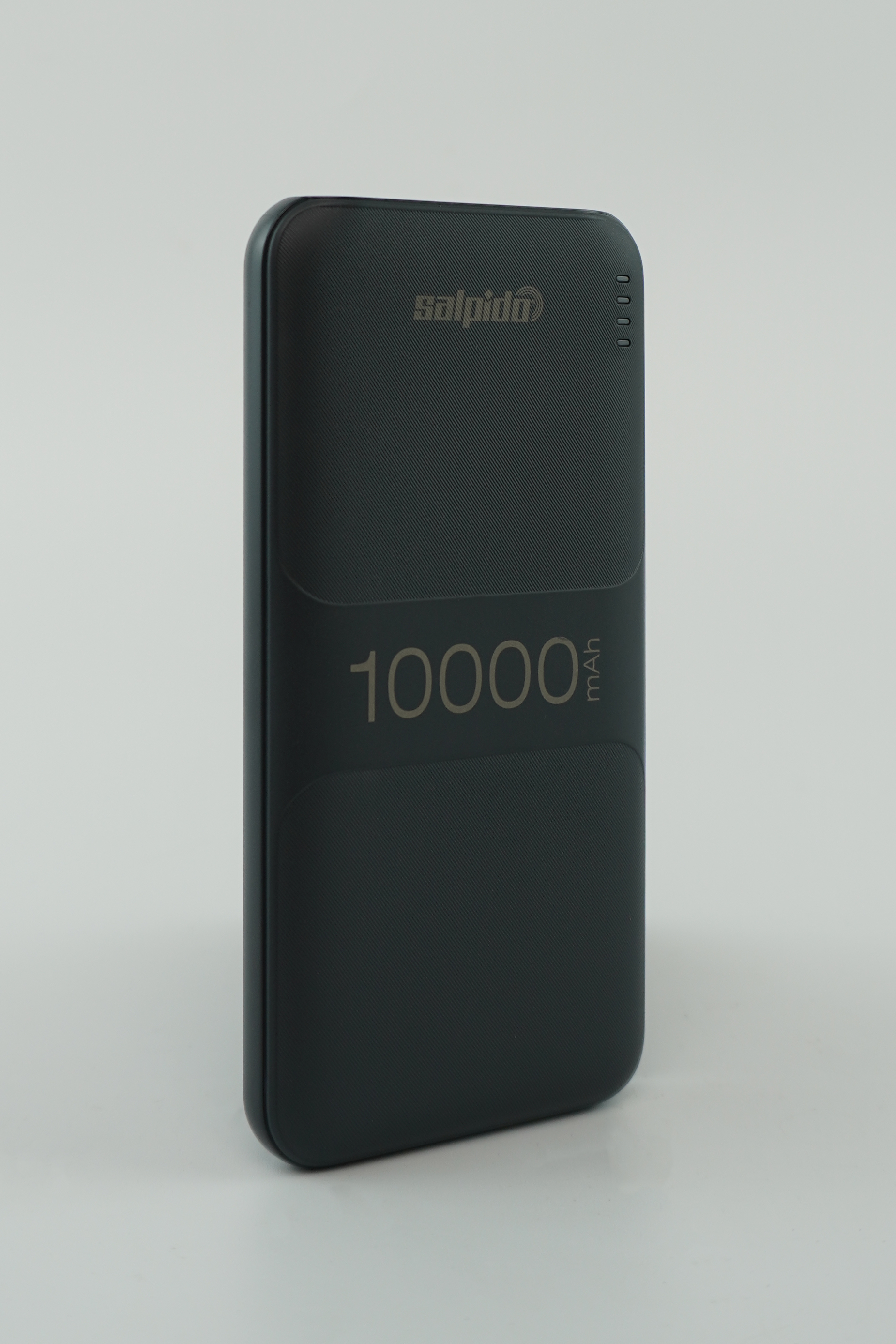

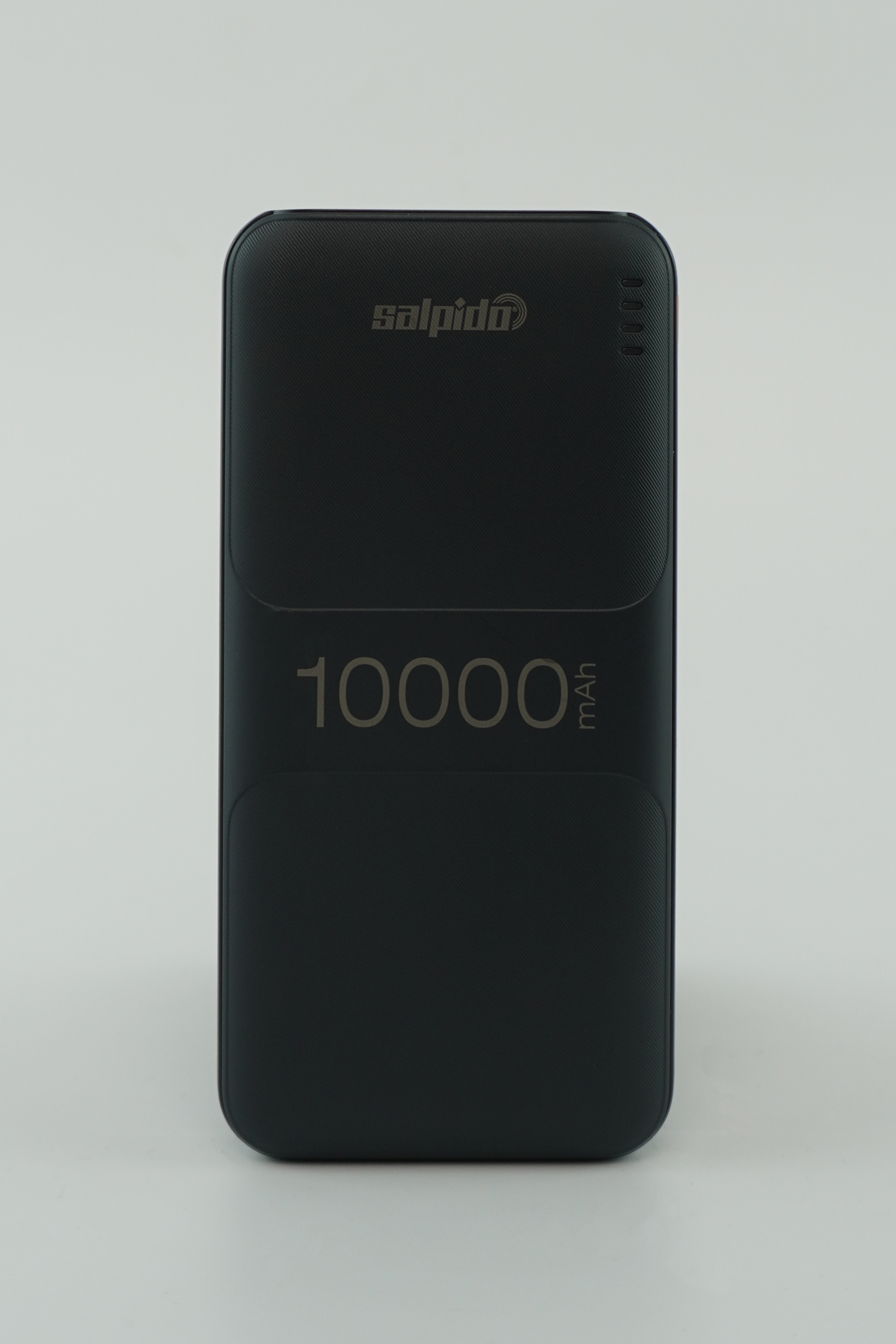

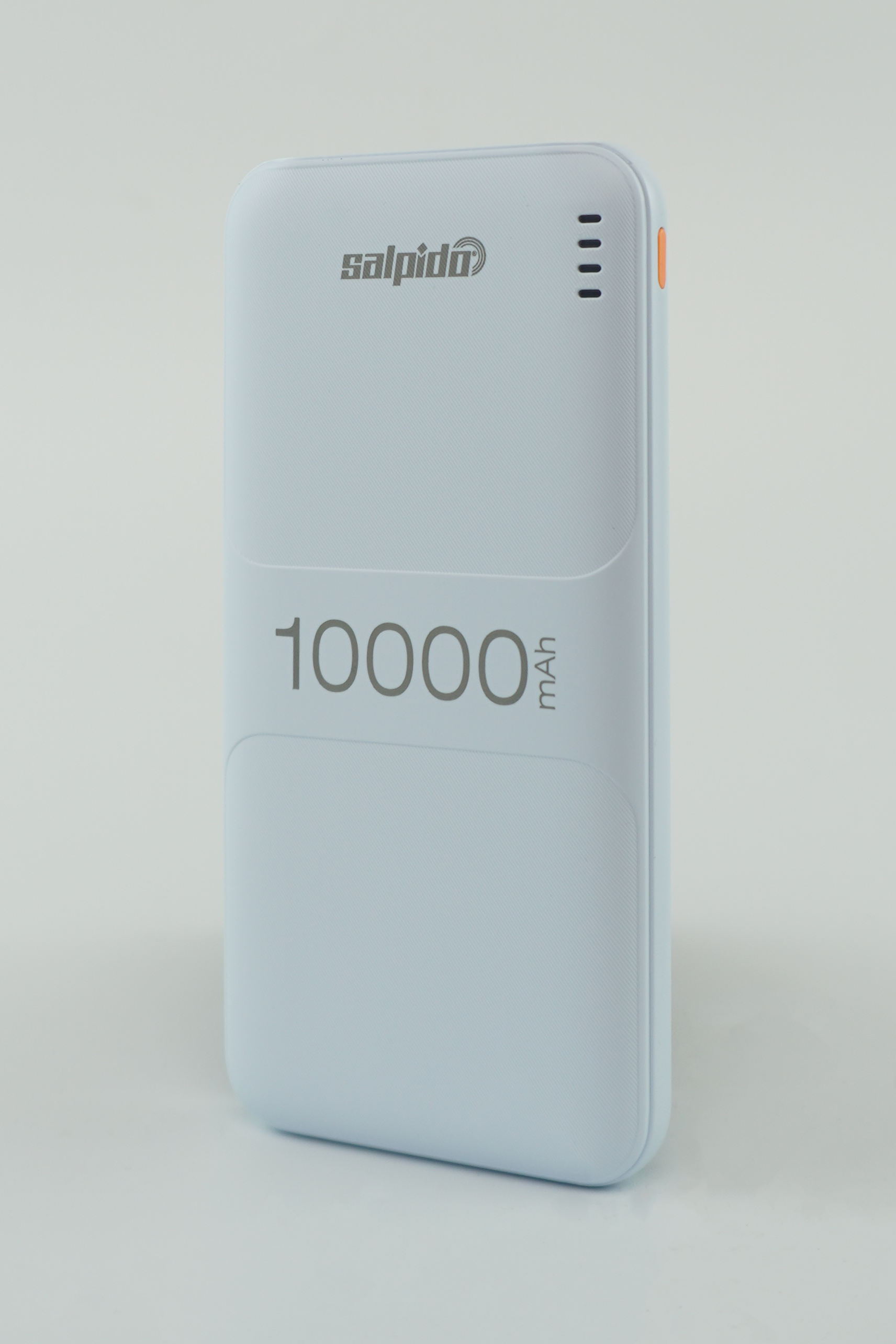

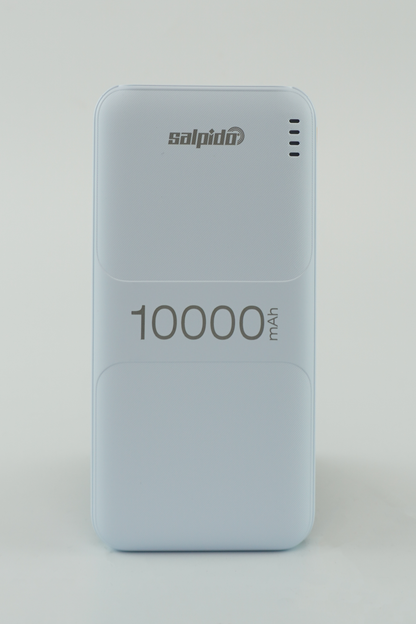

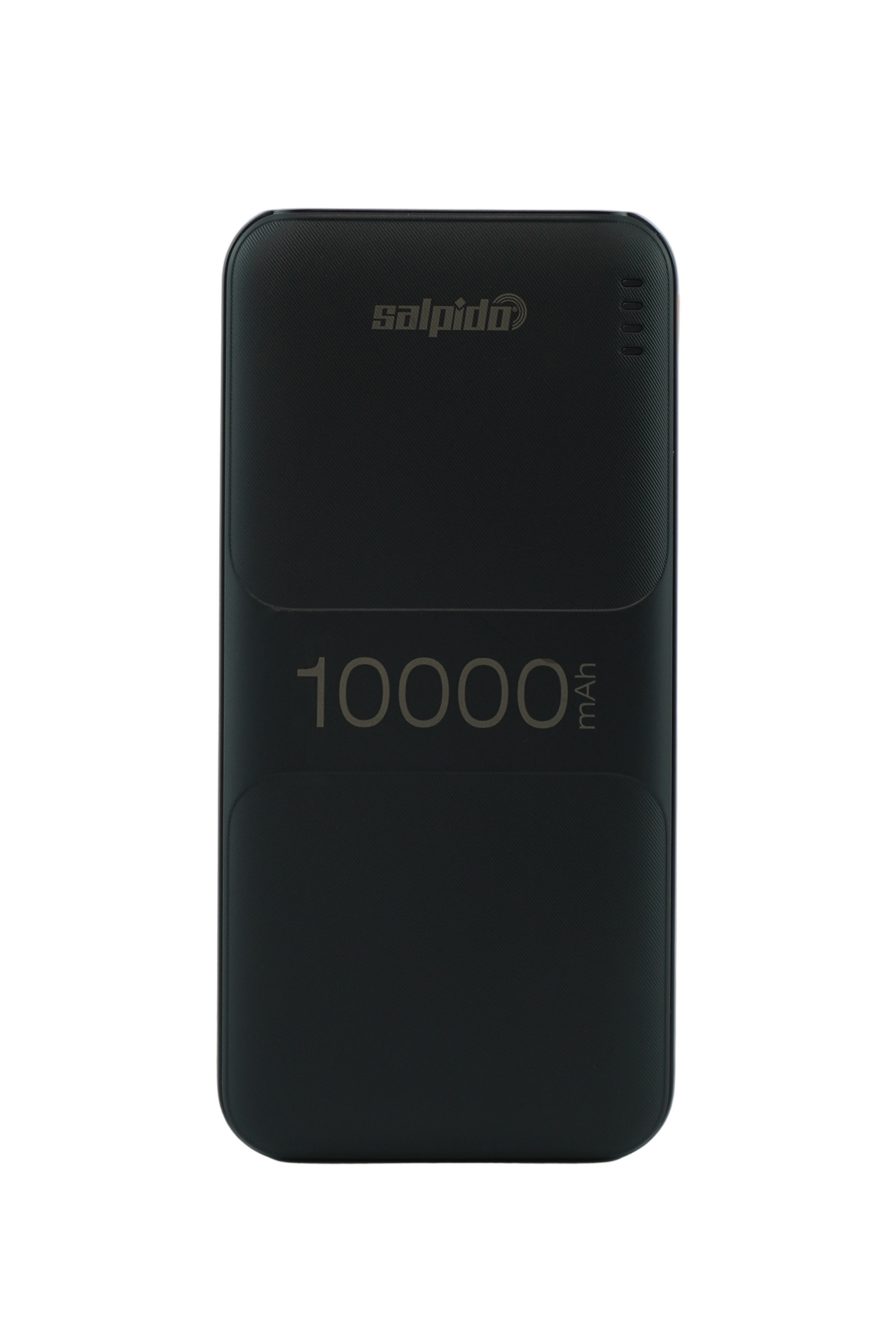

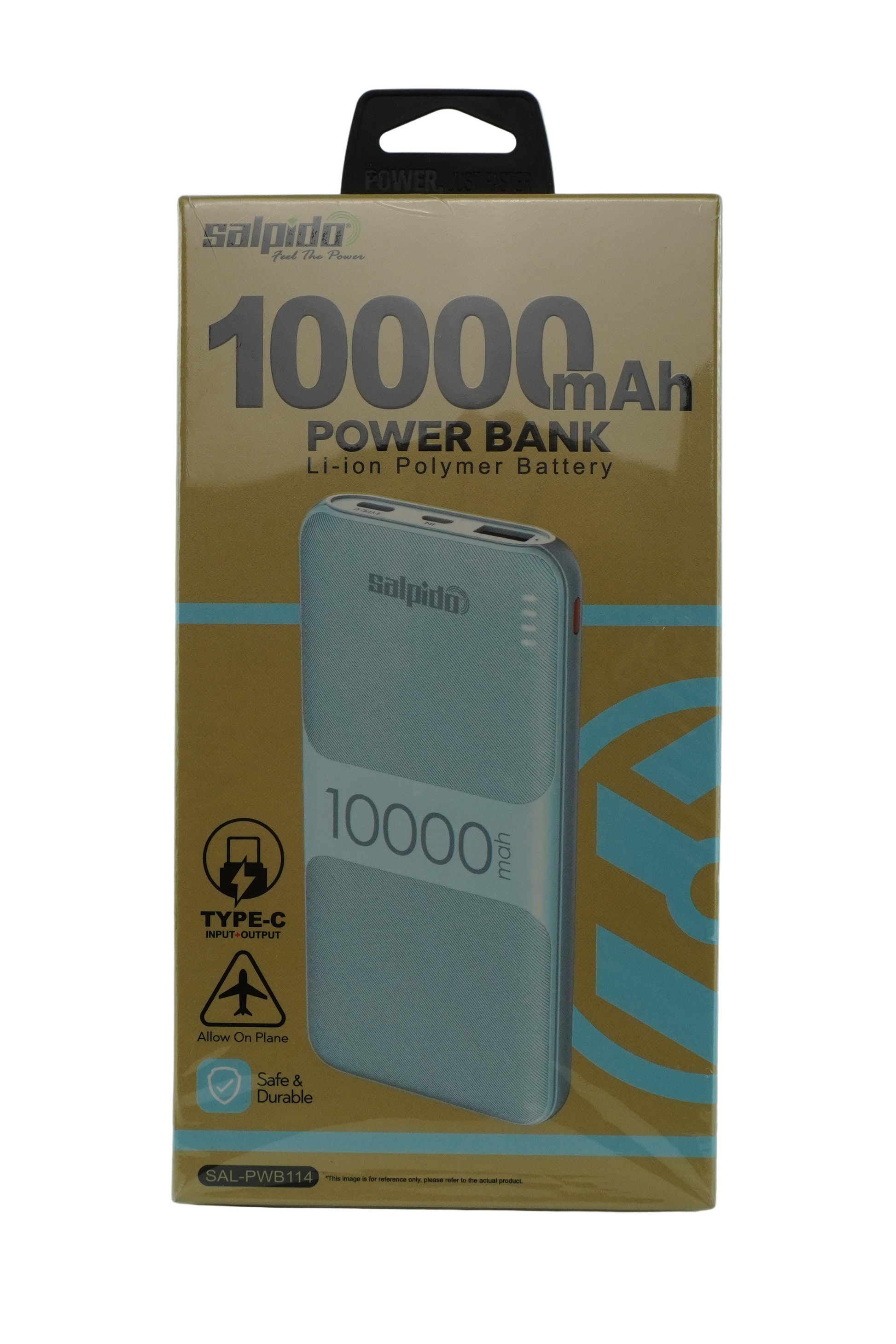

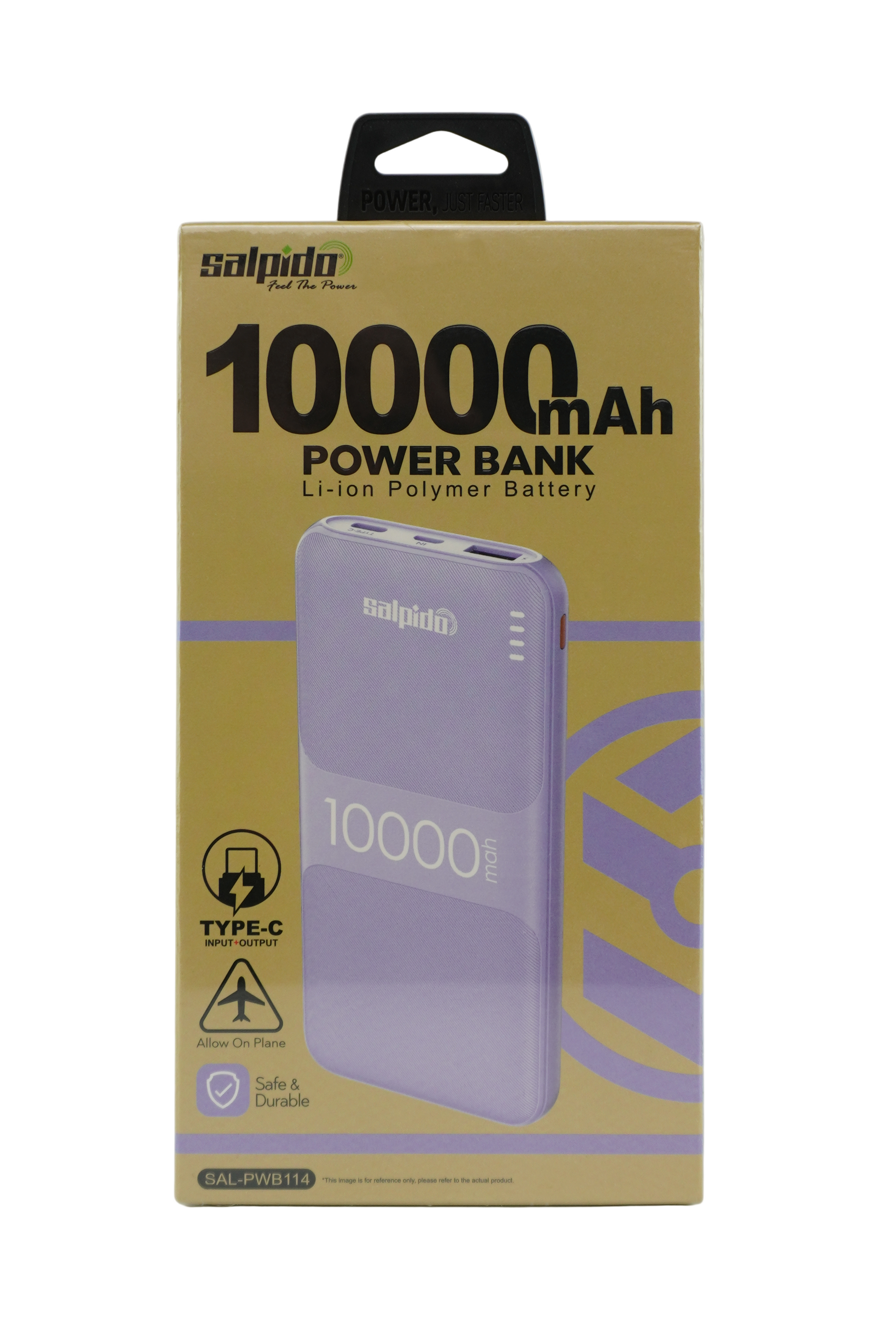

SAL-PWB114

• IC control technology is used to add multiple protection circuits to effectively protect and prolong the service life of lithium batteries.
• It has multiple protection functions of overcharge, over-discharge, over-current and short-circuit protection.
• With 2.0A high current charging, 1A and 2.1A dual output.
• Load automatic identification (plug and charge).

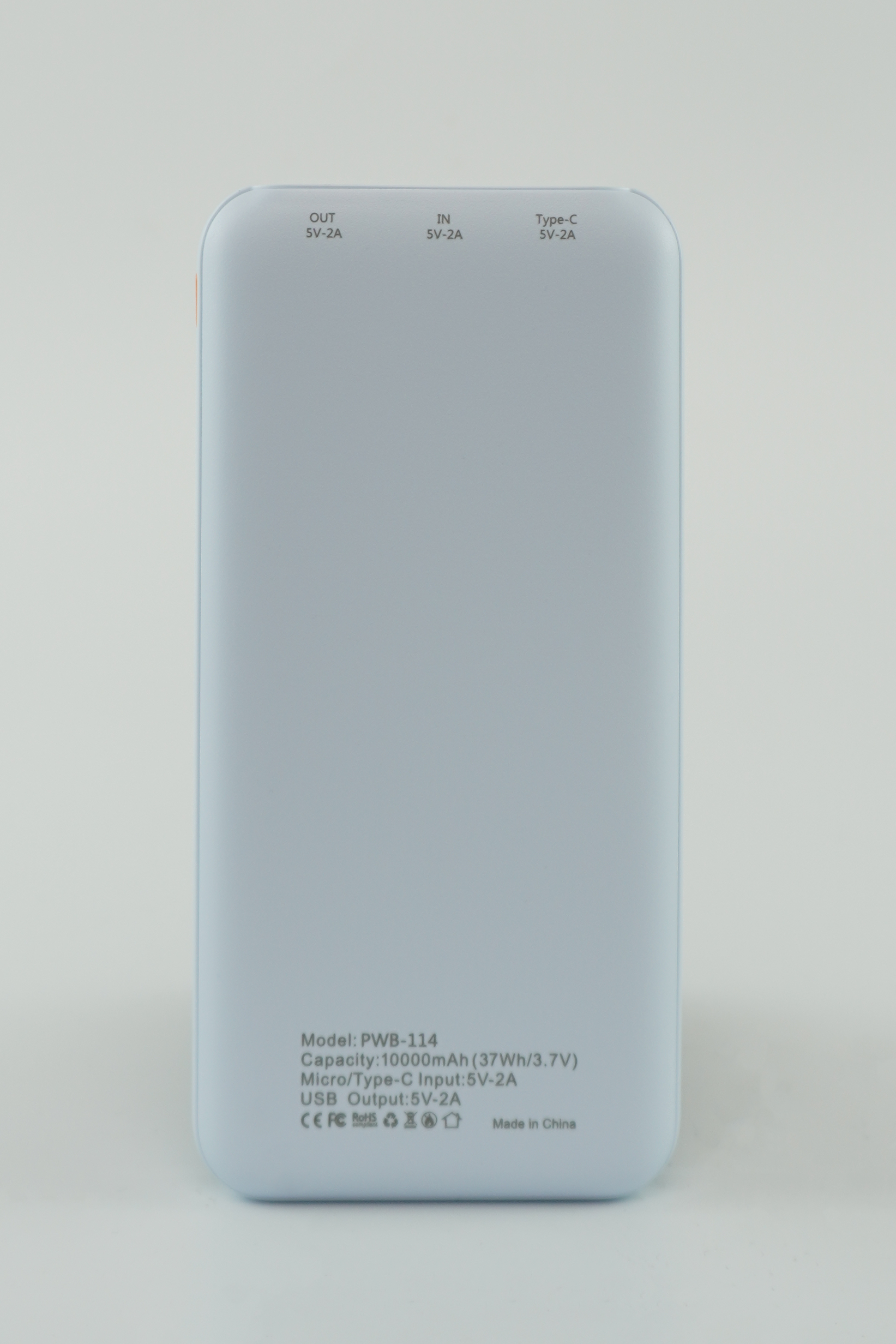

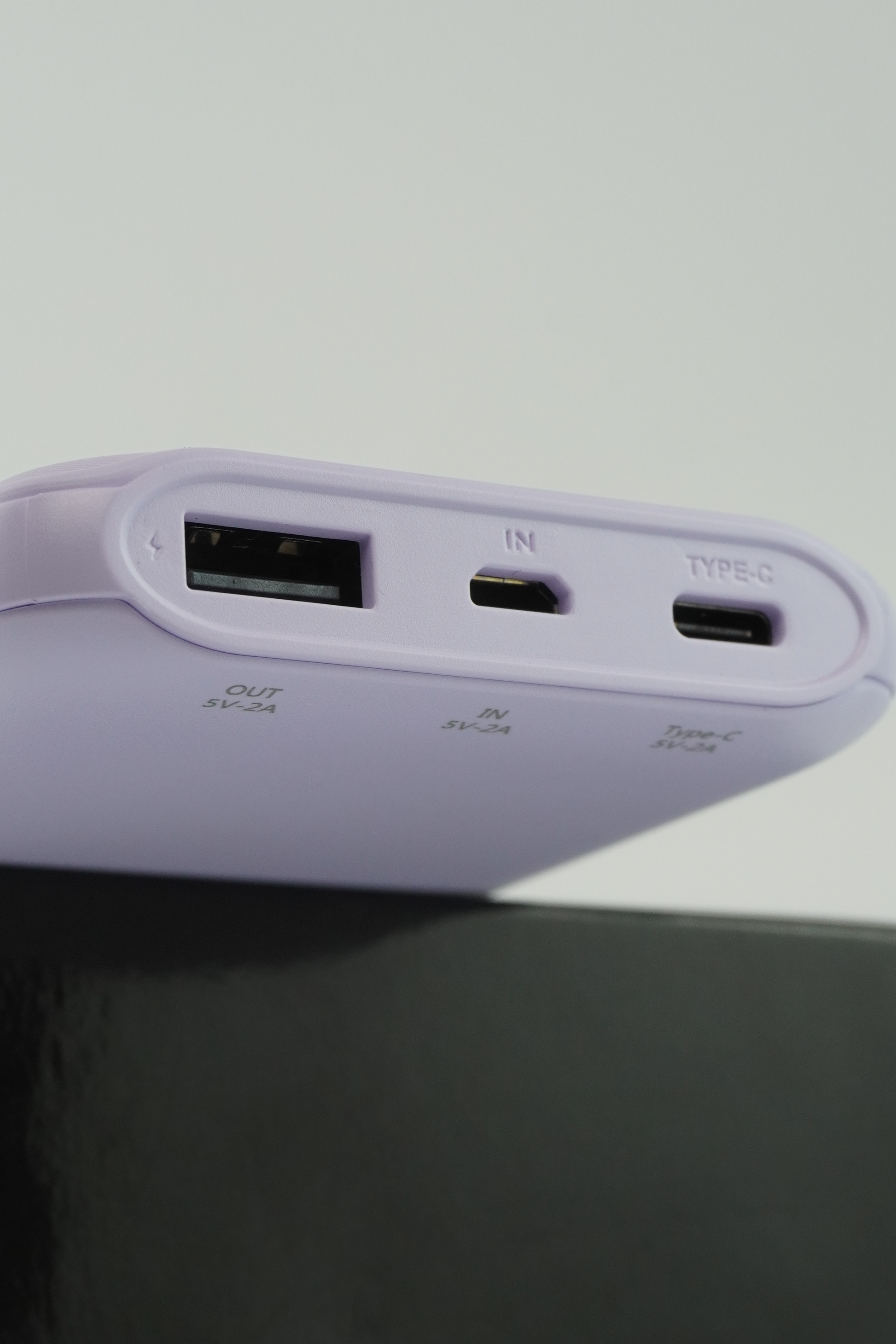

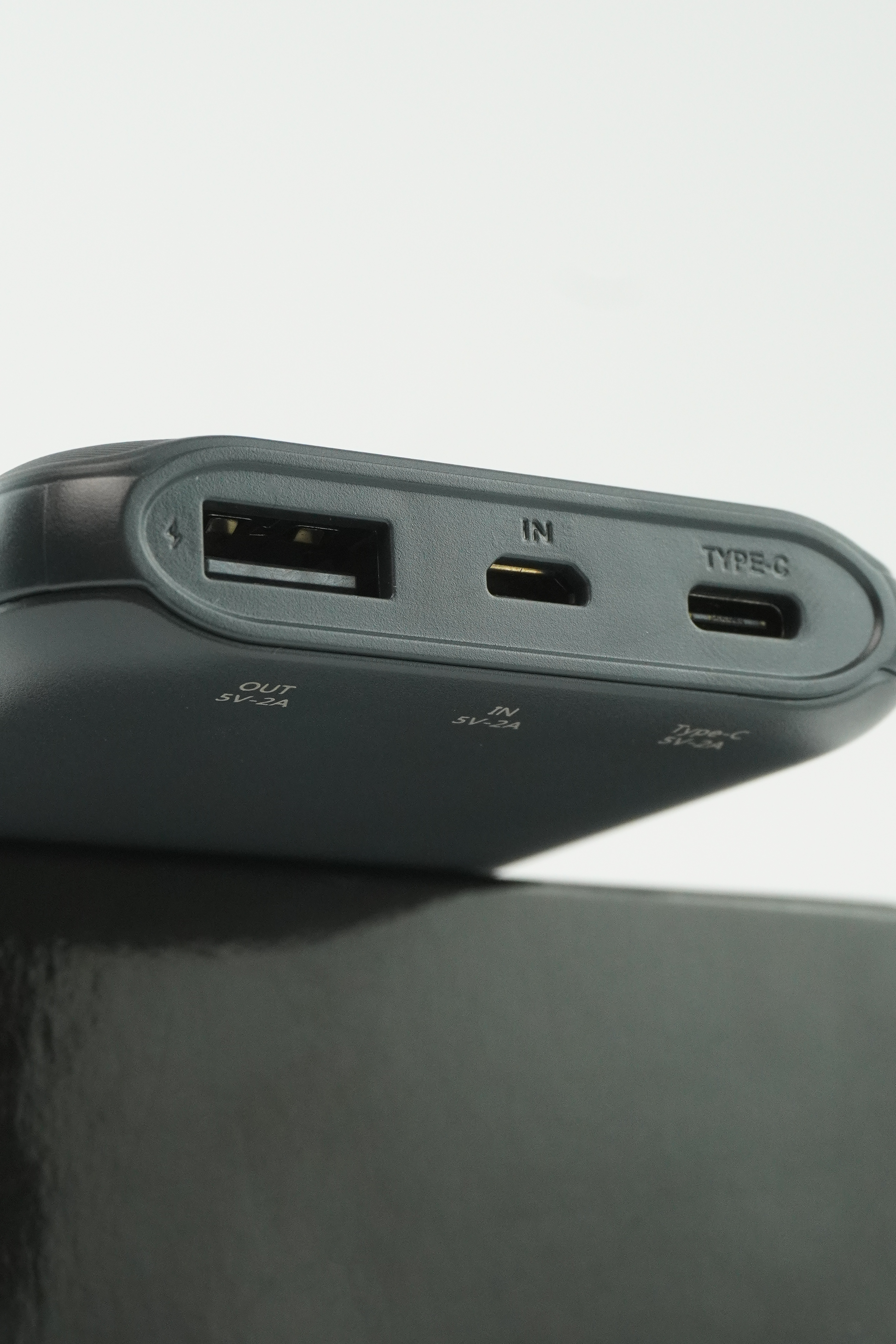

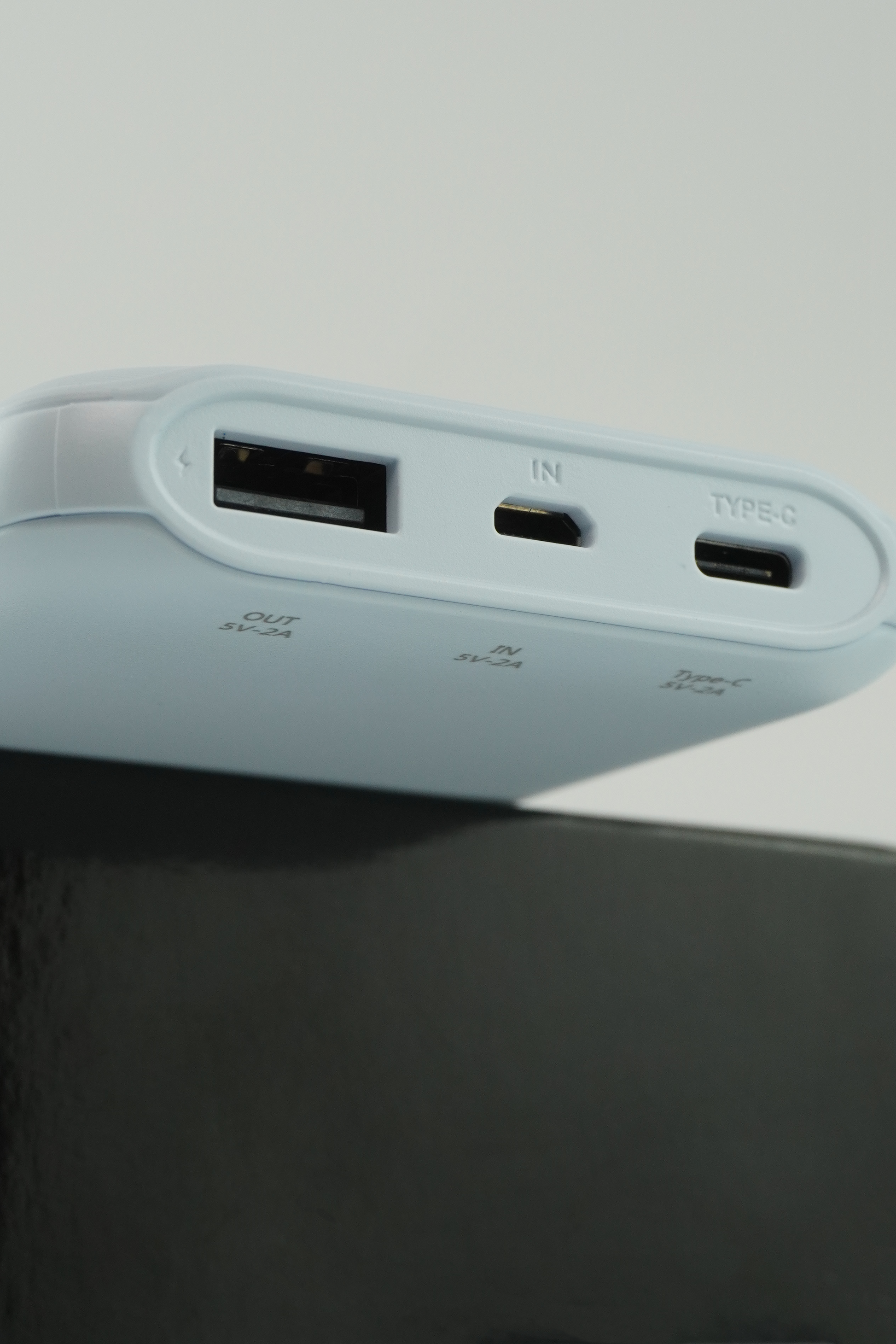

• MICRO input and TYPE-C input+output charging ports.

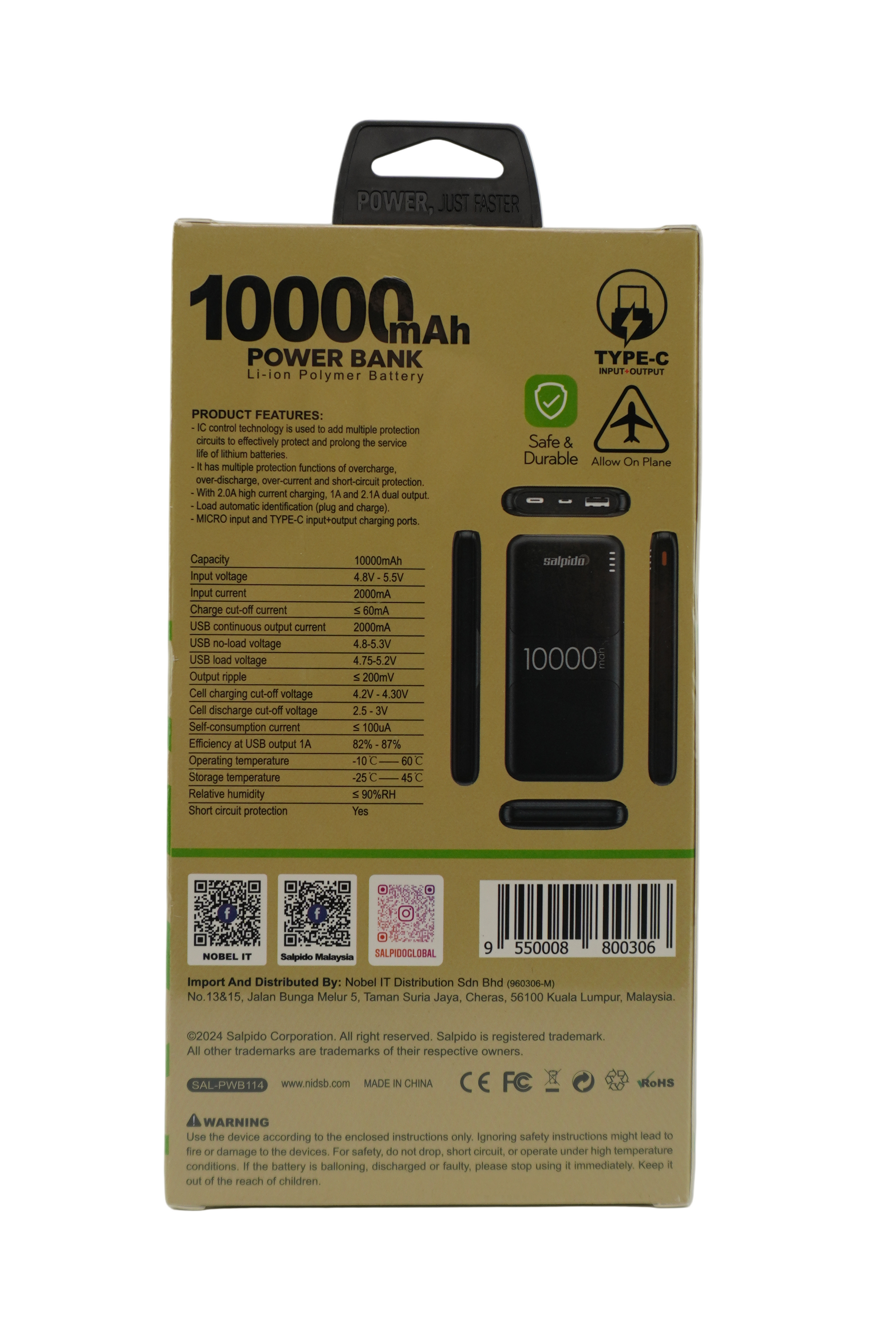

SPECIFICATIONS:

• Capacity: 10000mAh
• Input voltage: 4.8V 5.5V
• Input current: 2000mA
• Charge cut-off current: ≤ 60mA
• USB continuous output current: 2000mA
• USB no-load voltage: 4.8-5.3V
• USB load voltage: 4.75-5.2V
• Output ripple: ≤ 200mV
• Cell charging cut-off voltage: 4.2V 4.30V
• Cell discharge cut-off voltage: 2.5 3V
• Self-consumption current: ≤ 100uA
• Efficiency at USB output 1A: 82% 87%
• Operating temperature: -10℃—— 60℃
• Storage temperature: -25℃—— 45℃
• Relative humidity: ≤ 90%RH
• Short circuit protection: YES
