REVENGE 550

RM189.00
Skip to product information
Imperion REVENGE 550 - Salpido
  • Imperion REVENGE 550 - Salpido
  • Imperion REVENGE 550 - Salpido
REVENGE 550
Desktop Computer & Server Cases

REVENGE 550

In stock
RM189.00
Shipping calculated at checkout.

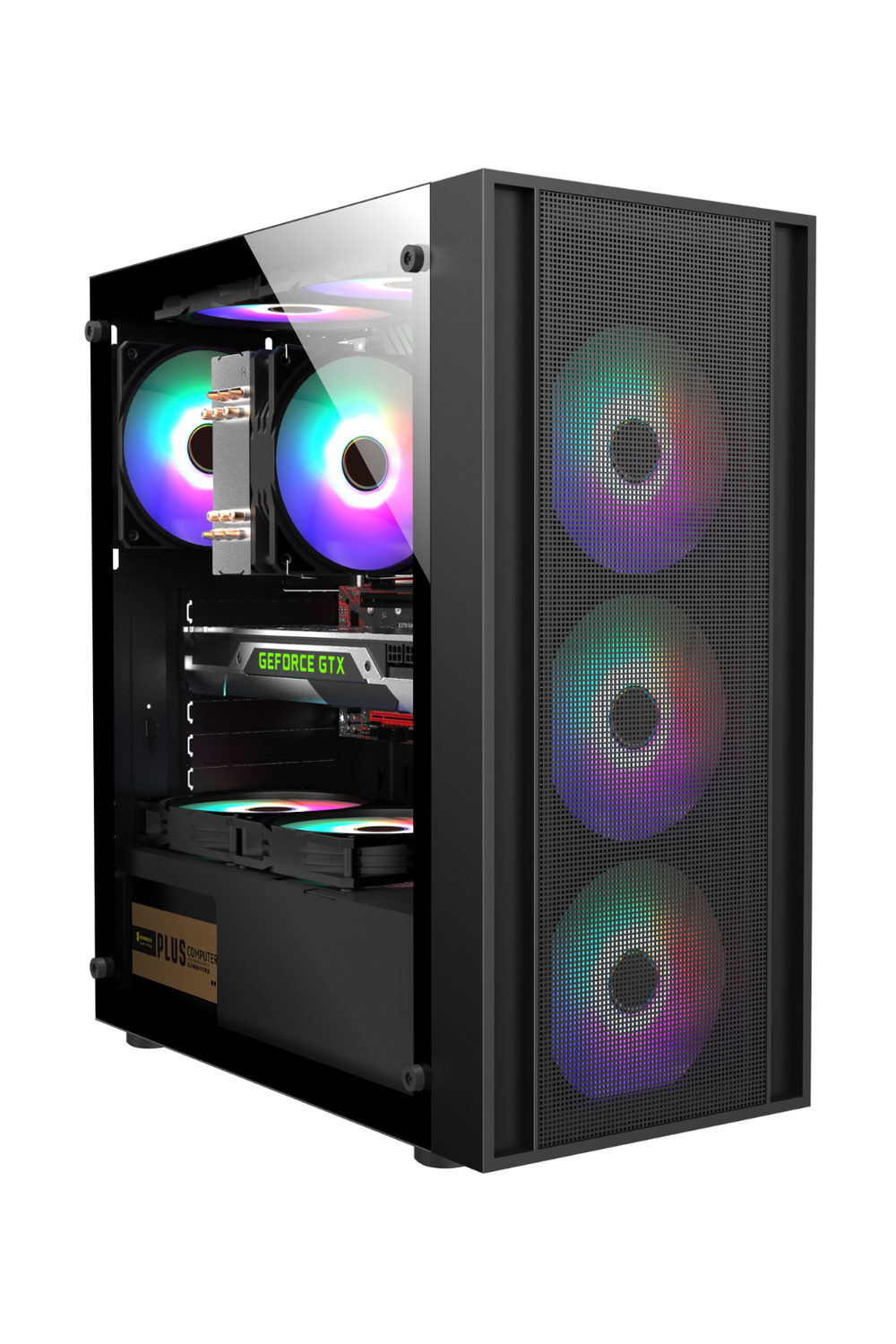

Show off your build with the Imperion REVENGE 550 PC case. Its mesh front panel provides ventilation, while the tempered-glass left side puts your components on display. A black interior and bottom-mounted power-supply layout give your setup a coordinated finish.

Build around an ATX, Micro-ATX or ITX motherboard, with space for a graphics card up to 335mm long and a CPU cooler up to 158mm tall. Multiple fan mounting positions and radiator support let you plan your cooling setup, while 38mm of listed cable-management space helps keep wiring organised. Fans are optional; the installed components and lighting shown in the product images illustrate a completed build.

Weight:

Size: 390 × 200 × 440mm (L × W × H)

Material: ABS, mesh, tempered glass and metal; 0.5mm SPCC steel chassis

Warranty: 1 year carry-in warranty for standard product; 3-months carry-in warranty for warehouse sale items.
Key Features
  • ABS and mesh front panel for ventilation, with a tempered-glass left side to display your build.
  • Supports ATX, Micro-ATX and ITX motherboards.
  • Accommodates graphics cards up to 335mm and CPU coolers up to 158mm.
  • Eight optional 120mm fan positions across the front, top, PSU cover and rear.
  • Listed radiator support: 240mm front, 240mm top and 120mm rear.
  • Metal top and bottom covers with dust filters.
  • Two 3.5-inch HDD bays, three 2.5-inch SSD bays and seven expansion slots.
  • Bottom-mounted PSU support and 38mm of listed cable-management space.
What's in the box

1 × Imperion REVENGE 550 PC case. Fans are listed as optional; pictured PC components and lighting do not establish included items.

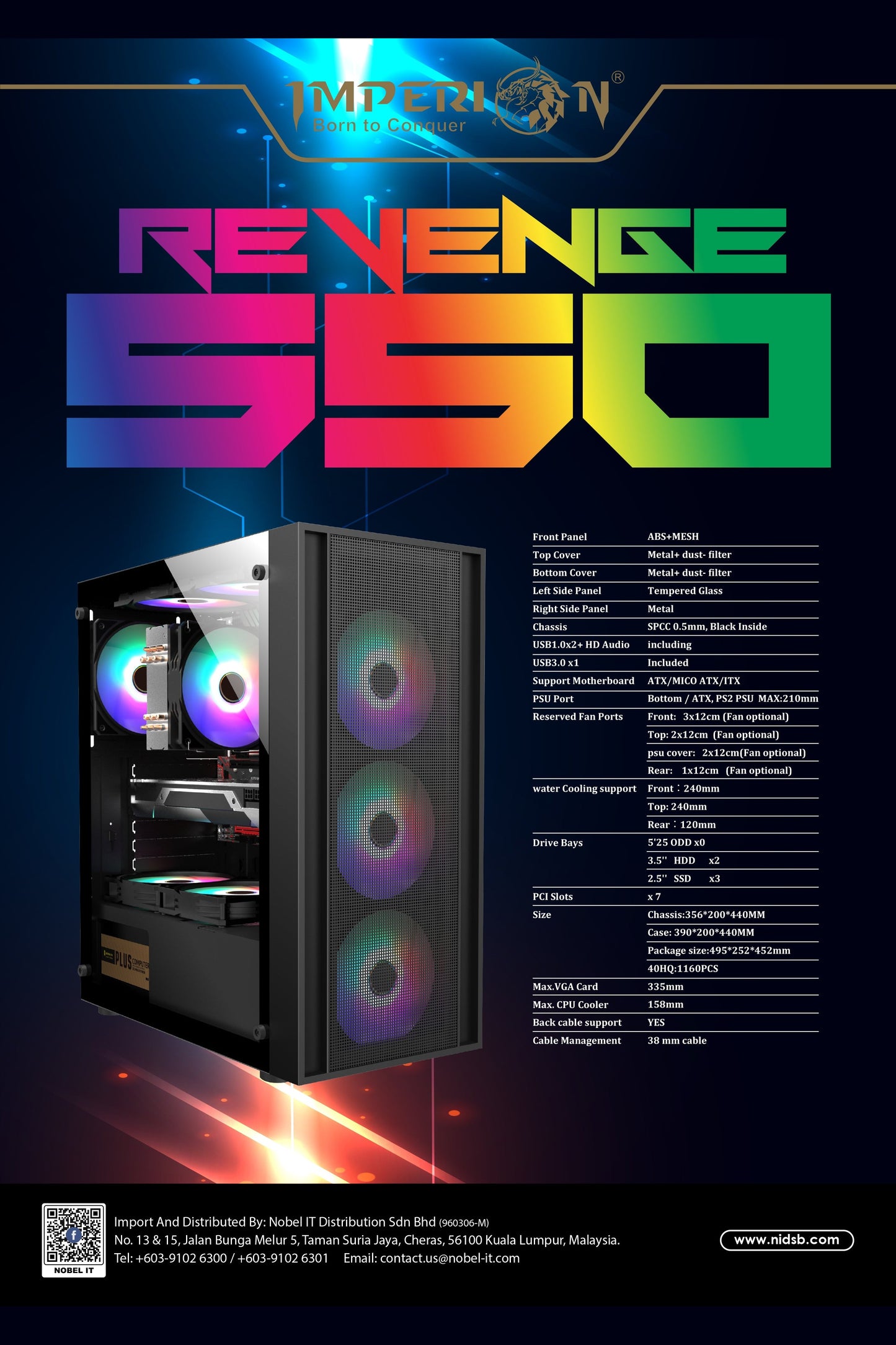

Specifications
  • Model: Imperion REVENGE 550; colour: black
  • Materials: ABS and mesh front; tempered-glass left panel; metal right, top and bottom panels; 0.5mm SPCC steel chassis with black interior
  • Motherboard support: ATX / Micro-ATX / ITX
  • I/O: 1 × USB 3.0, 2 × USB ports listed as USB 1.0, and HD Audio
  • PSU: Bottom-mounted ATX / PS2 power supply, maximum length 210mm
  • Optional fan mounts: Front 3 × 120mm; top 2 × 120mm; PSU cover 2 × 120mm; rear 1 × 120mm
  • Radiator support: Front 240mm; top 240mm; rear 120mm. Check component clearance for the intended configuration.
  • Drive bays: 2 × 3.5-inch HDD and 3 × 2.5-inch SSD; no 5.25-inch optical-drive bay
  • Expansion slots: 7
  • Maximum graphics-card length: 335mm; maximum CPU-cooler height: 158mm
  • Cable management: Listed 38mm space with rear cable routing support
  • Case dimensions (L × W × H): 390 × 200 × 440mm
  • Chassis dimensions (L × W × H): 356 × 200 × 440mm
  • Package dimensions (L × W × H): 495 × 252 × 452mm
