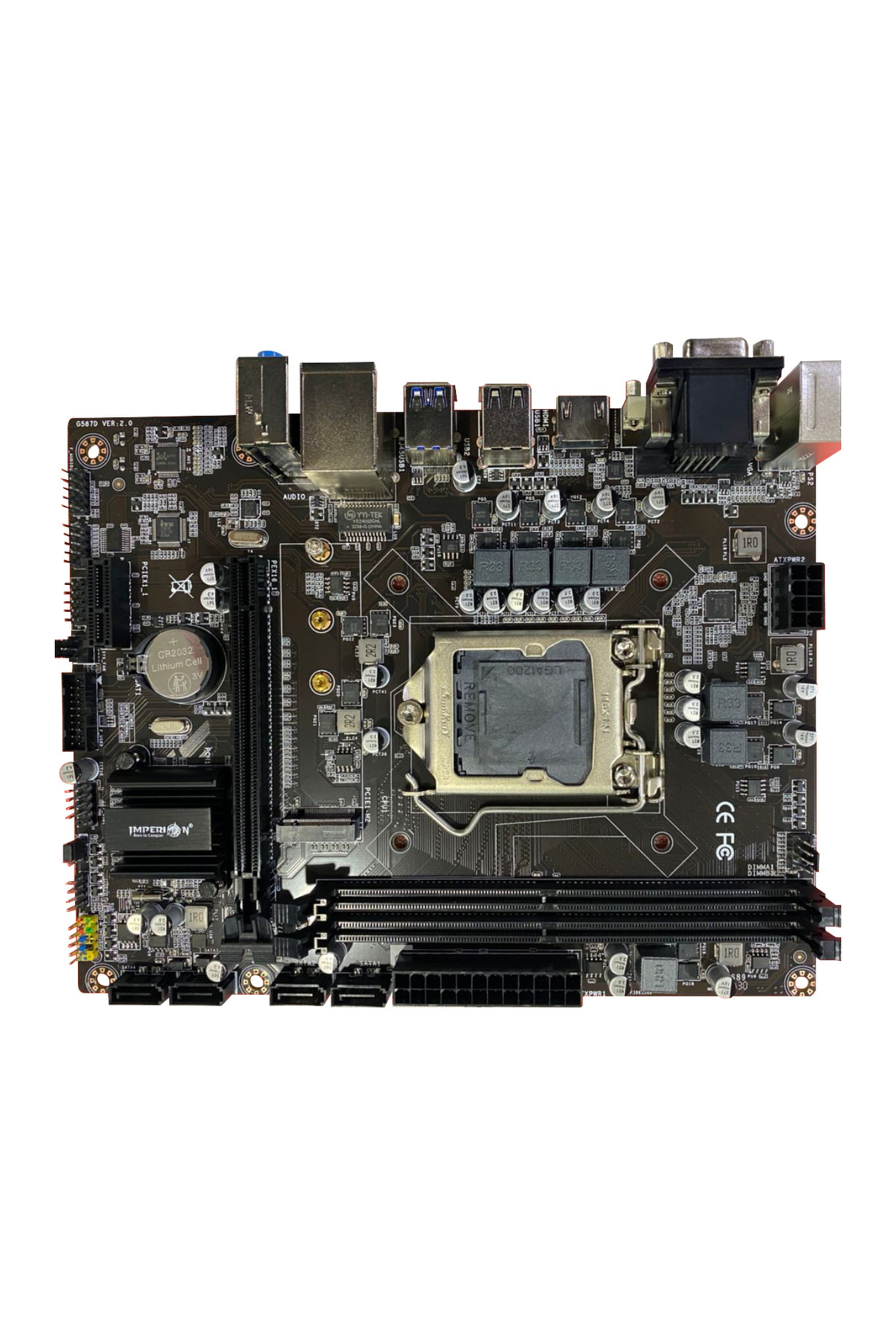

Build a compact desktop around the Imperion IMP-GMX3 (H510-G587) motherboard. Based on the Intel H510 Express chipset, it is listed for compatible 10th- and 11th-generation Intel processors using the LGA1200 socket, with two DDR4 memory slots supporting up to 32GB.

Connect your storage, peripherals and display with an NVMe M.2 connector, four SATA ports and a selection of rear-panel connections including HDMI, DVI and VGA. Whether you are assembling a workspace PC or replacing a board, check your exact processor, memory and case compatibility before installation. Display-output availability depends on the installed processor's graphics support.

Weight:

Size: 17 × 21cm

Material:

Warranty: 1 year carry-in warranty for standard product; 3-months carry-in warranty for warehouse sale items.
Key Features
  • Intel H510 Express chipset with LGA1200 socket, listed for compatible 10th- and 11th-generation Intel processors.
  • Two DDR4 memory slots with support for up to 32GB.
  • One PCI Express x16 slot and one PCI Express x1 slot for expansion.
  • One NVMe M.2 connector and four SATA ports for storage.
  • HDMI, DVI and VGA display connections; functionality depends on processor graphics support.
  • Four USB 2.0 ports, two USB 3.0 ports, PS/2 keyboard and mouse ports, RJ45 LAN and audio connections.
  • Compact Micro-ATX board with listed dimensions of 17 × 21cm.
What's in the box

1 × Imperion IMP-GMX3 (H510-G587) motherboard
Specifications
  • Model: Imperion IMP-GMX3 (H510-G587)
  • Chipset: Intel H510 Express
  • CPU socket: LGA1200
  • Listed processor support: Compatible 10th- and 11th-generation Intel processors; verify exact CPU compatibility before purchase
  • Memory: 2 × DDR4 slots, up to 32GB
  • Listed memory speeds: DDR4 2666/2400/2133
  • Expansion: 1 × PCI Express x16, 1 × PCI Express x1
  • Storage: 1 × NVMe M.2 connector, 4 × SATA ports

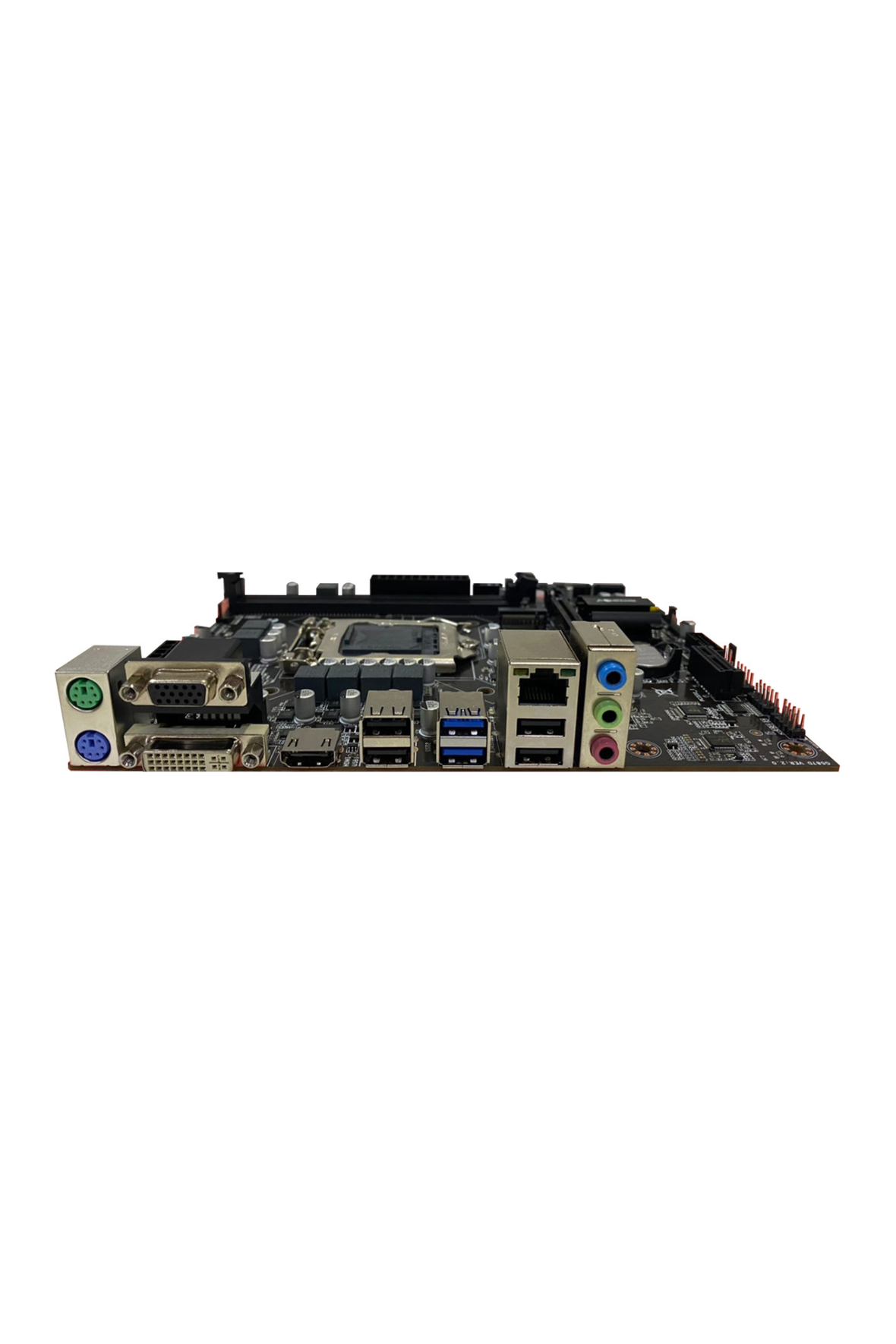

  • Rear ports: 1 × PS/2 keyboard, 1 × PS/2 mouse, 4 × USB 2.0, 2 × USB 3.0, 1 × DVI, 1 × VGA, 1 × HDMI, 1 × RJ45, line-in, line-out and microphone-in
  • LAN as listed: Realtek 100M LAN
  • Audio as listed: Realtek ALC 6-channel HD Audio Codec
  • Form factor: Micro-ATX
  • Board dimensions: 17 × 21cm
