EXTREME SERIES (BLACK EDITION)
  • EXTREME SERIES (BLACK EDITION)
EXTREME SERIES (BLACK EDITION)
Computer Power Supplies

EXTREME SERIES (BLACK EDITION)

In stock
RM199.00
Shipping calculated at checkout.

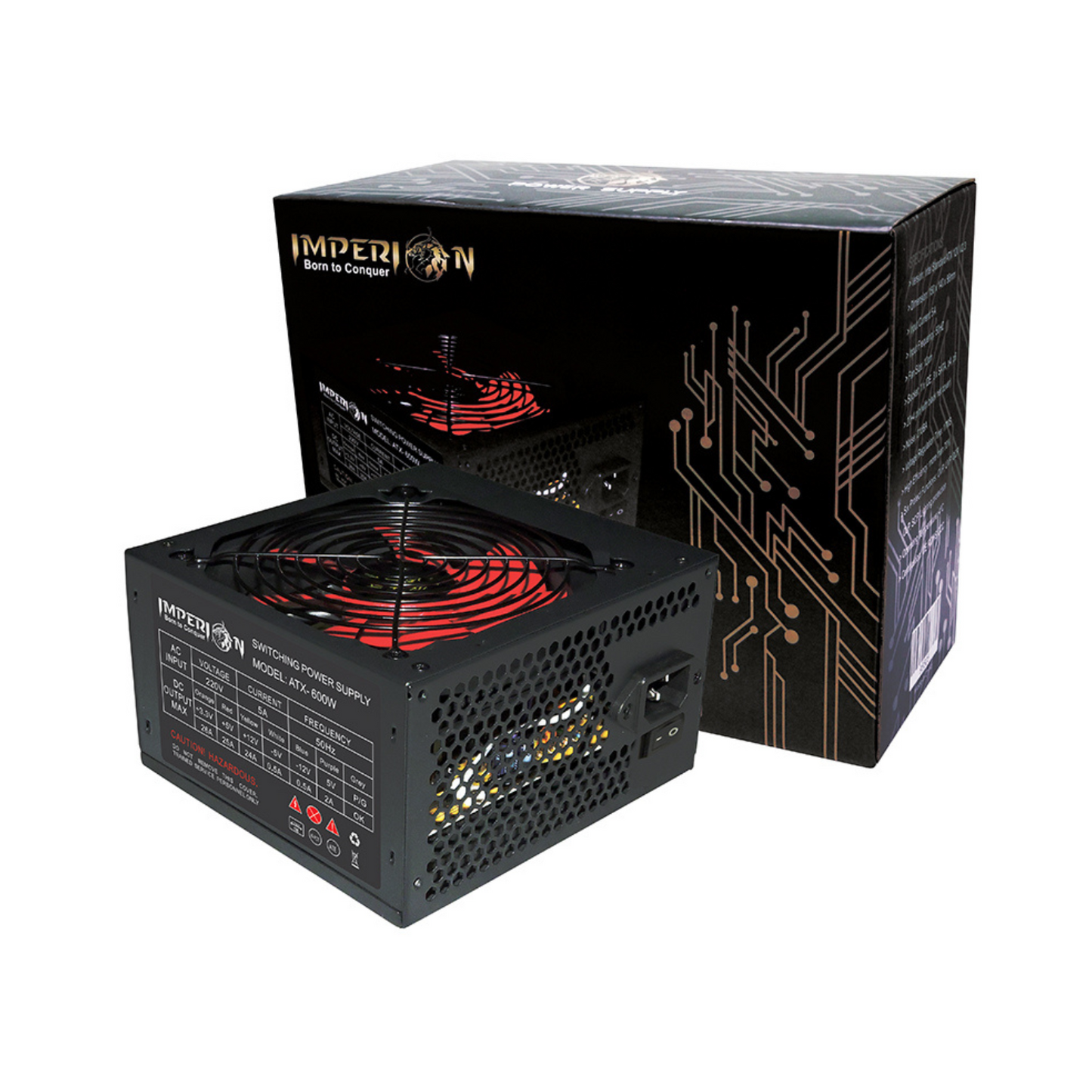

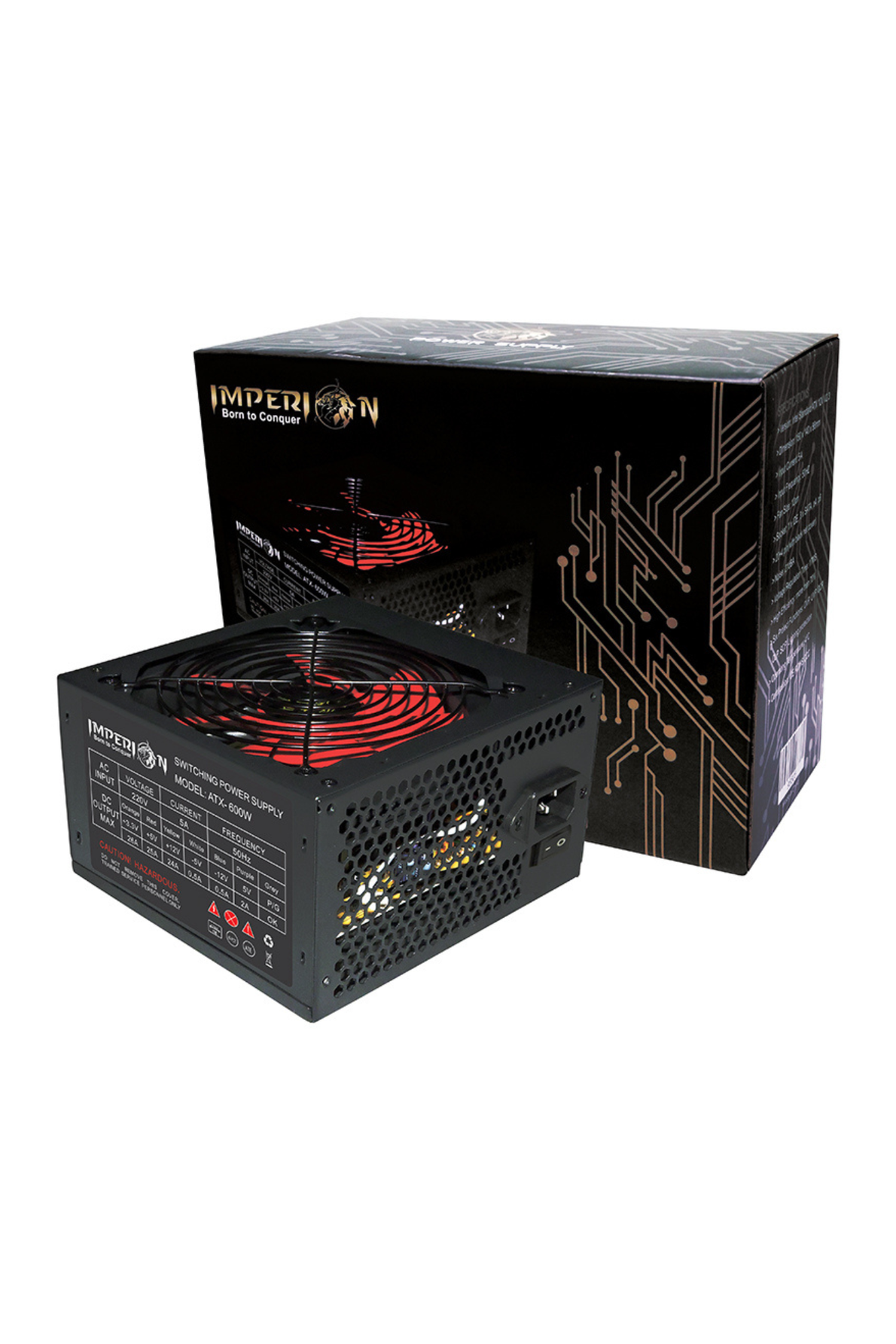

The Imperion EXTREME SERIES (BLACK EDITION) combines a black enclosure, a 12cm cooling fan and a selection of power connectors for compatible desktop PC components. Built to the Intel ATX 12V V2.3 standard, it features a 20+4-pin cable with a black net cover to complement your setup.

Whether you are assembling a desktop or replacing an existing power supply, its 150 × 140 × 86mm dimensions give you a clear starting point for checking case fit. Match the connectors and power requirements of your components before installation.

    Check the unit's rated output, connector requirements and case clearance against your system before purchase.

    Intel ATX 12V V2.3 standard

    12cm cooling fan

    20+4-pin, SATA, IDE, P4 and P6 connectors

    Six protection functions

    Weight:

    Size: 150 × 140 × 86mm

    Material:

    Warranty: 1 year carry-in warranty for standard product; 3-months carry-in warranty for warehouse sale items.
    Key Features
    • ATX compatibility: Intel Standard ATX 12V V2.3 design for compatible desktop systems.
    • 12cm cooling fan: A large fan with a listed noise level of 21dBA.
    • Multiple connectors: Includes a 20+4-pin connector with black net cover, 1 × IDE, 3 × SATA, P4 and P6 connectors.
    • Efficiency above 70%: As listed in the product specifications.
    • Six protection functions: Overvoltage, undervoltage, overcurrent, overload, short-circuit and lightning protection.
    What's in the box

    1 x EXTREME SERIES (BLACK EDITION)
    Specifications
    • Standard: Intel ATX 12V V2.3
    • Dimensions: 150 × 140 × 86mm
    • Input current: 3A
    • Input frequency: 50–60Hz
    • Fan size: 12cm
    • Connectors: 1 × IDE, 3 × SATA, P4, P6 and 20+4-pin with black net cover
    • Noise level: 21dBA
    • Voltage regulation time: 17ms
    • Efficiency: More than 70%
    • Protection functions: OVP, UVP, OCP, OLP, SCP and lightning protection
    • Listed certifications: CE, RoHS and CCC
    User's Manual
    Warning
    Disclaimer

    This image is for reference only, please refer to the actual product.
